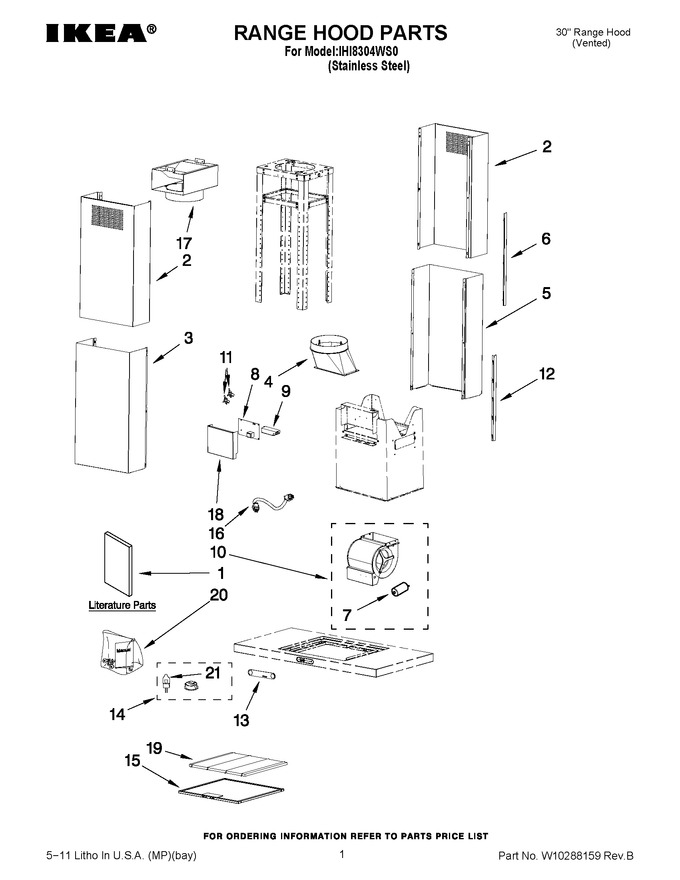

01 - Range Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10177448B | Use & Care Guide |
|
- | |||||
| 2 | W10256668 | Chimney, Upper |
|
- | |||||
| 3 | W10256667 | Chimney,frnt Lwr |
|
- | |||||
| 4 | W10169956 | Duct, Air |
|
- | |||||
| 5 | W10256669 | Chimney, Back Lwr |
|
- | |||||
| 6 | W10256670 | Trim |
|
- | |||||
| 7 | 8186677 | Capacitor |
|
$ 235.77 | |||||
| 8 | WPW10211246 | Cntrl, Electronic (Replaces: W10211246) |
|
$ 563.38 | |||||
| 9 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 229.15 | ||||
| 10 | W10212003 | Motor, Complete |
|
$ 491.47 | |||||
| 11 | 8190833 | Bracket, Mounting |
|
$ 7.46 | |||||
| 12 | W10256671 | Mould, Lower |
|
- | |||||
| 13 | W10211247 | Panel, Control |
|
$ 69.06 | |||||
| 14 | WP8186678 | Bulb Assembly (Replaces: 8186678) |
|
$ 73.21 | |||||
| 15 | WP8190836 | Filter, Grease (Replaces: 8190836) |
|
Immediately | $ 120.09 | ||||
| 16 | W10256672 | Harns-wire |
|
$ 52.63 | |||||
| 17 | W10256673 | Duct-air (diverter) |
|
- | |||||
| 18 | W10211254 | Cover, Transformer |
|
- | |||||
| 19 | 8190968 | Filter, Carbon |
|
$ 188.53 | |||||
| 20 | W10256674 | Pack, Document |
|
$ 27.79 | |||||
| 21 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 29.28 |
