SELECT A DIAGRAM

01 - Cooktop Parts

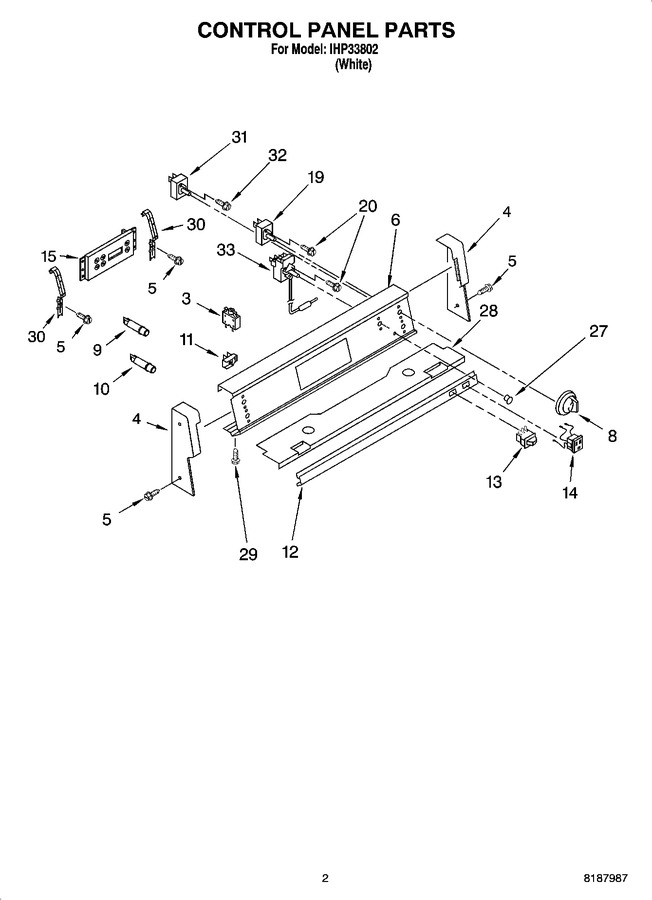

02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	3191073		Breaker, 15 Amp		Appelez-nous	-
4	9752422FW		End Cap (left Side)		Appelez-nous	-
4	9752423FW		End Cap (right Side)		Appelez-nous	-
5	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
6	9782660		Panel, Control		Appelez-nous	-
8	9750272FW		Knobs, Control		Appelez-nous	-
9	313102		Light, Indicator (with Lens) (4)				$ 66.48
10	9780802		Pilot Light		Appelez-nous	-
11	9780801		Module, Light		Appelez-nous	-
12	9752442PW		Trim Strip		Appelez-nous	-
13	3191100FW		Switch, Oven Light		Appelez-nous	-
14	9782700FW		Outlet, Untimed		Appelez-nous	-
15	9782681		Oven Control (timer Assembly)		Appelez-nous	-
19	WP9750638		Infinite Switch (1400w)   (Replaces: 9750638)			Immediately	$ 113.89
19	WP9750641		Infinite Switch (2400w (2))   (Replaces: 9750641)			Immediately	$ 103.02
20	WP3400882		Screw, 8-32 X .220   (Replaces: 3400816)			Immediately	$ 7.55
27	WP9750343		Lens, Indicator (2)   (Replaces: 9752589)			Immediately	$ 6.00
28	9752439		Base, Console		Appelez-nous	-
29	WP3400832		Screw, 8-18 X 1/2   (Replaces: 3196168)			Immediately	$ 8.18
30	9781754		Bracket, Timer (2)		Appelez-nous	-
31	9781313		Switch, Selector		Appelez-nous	-
32	W11245710		Screw, 8-18 X 3/8   (Replaces: 9780274)			Immediately	$ 14.75
33	9781315		Thermostat, Oven				$ 238.09

    View Diagram in Separate Window       Print Part List
