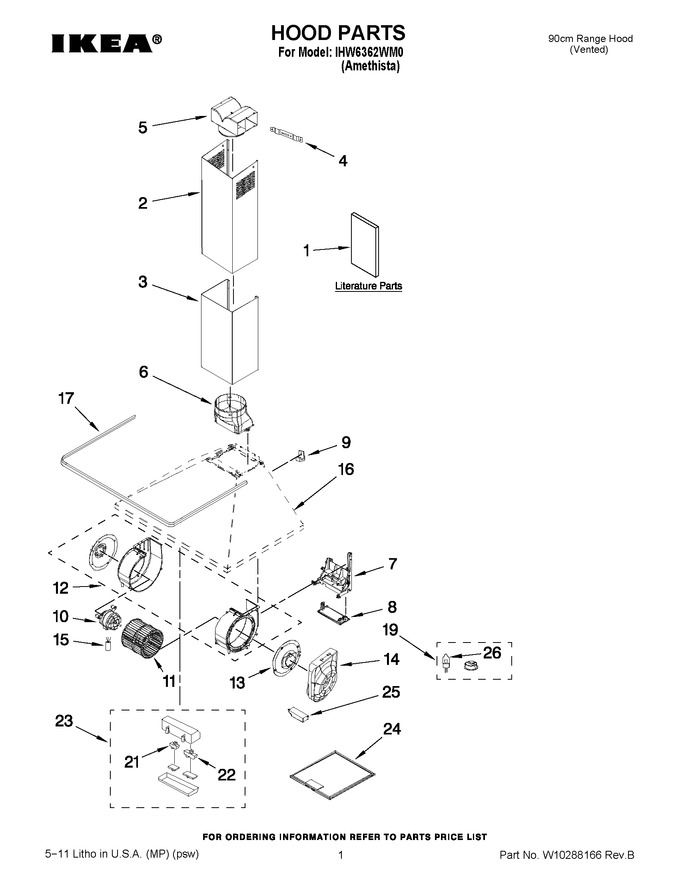

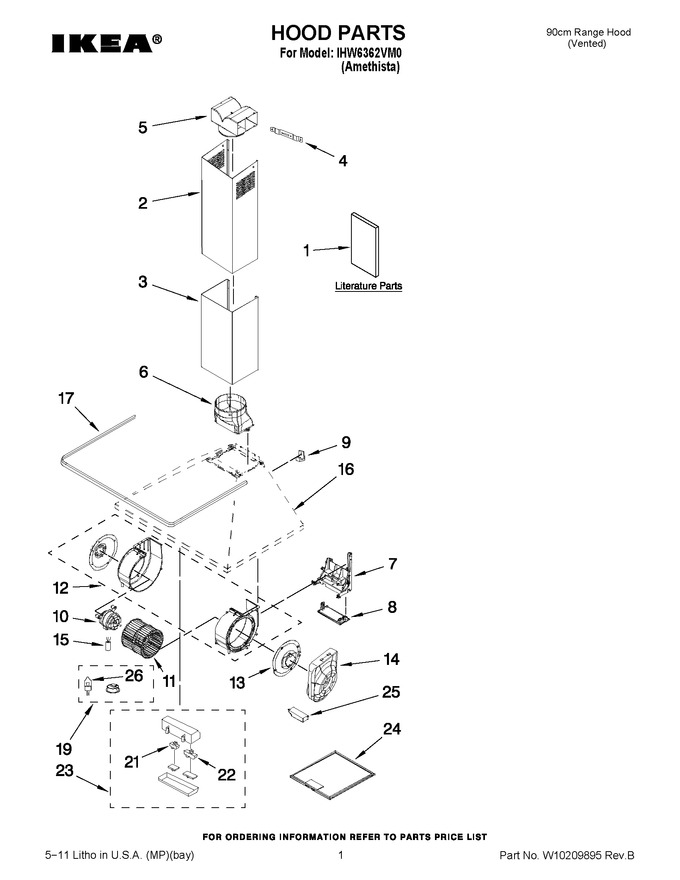

01 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10177452		Use & Care Guide		Appelez-nous	-
2	8186696		Chimney, Upper		Appelez-nous	-
3	8186695		Chimney, Lower		Appelez-nous	-
4	8190846		Bracket, Mounting		Appelez-nous	-
5	8190857		Duct, Air Diverter				$ 20.08
6	W10209893		Duct, Air Connect				$ 94.03
7	8190852		Box, Capacitor		Appelez-nous	-
8	8190853		Cover		Appelez-nous	-
9	8190805		Bracket, Mounting				$ 5.86
10	8186685		Motor, Fan				$ 451.91
11	8190800		Wheel, Blower				$ 64.42
12	W10209892		Housing, Fan Motor		Appelez-nous	-
13	8190816		Grill, Vent				$ 51.29
14	8186692		Filter, Charcoal				$ 193.49
15	8186687		Capacitor				$ 80.90
16	N/P		Canopy (not Serviced)		Appelez-nous	-
17	W10209924		Trim (frame)		Appelez-nous	-
19	WP8186678		Bulb Assembly   (Replaces: 8186678)				$ 73.21
21	8190854		Switch, Motor				$ 51.53
22	8190855		Switch, Light				$ 69.43
23	W10209259		Slider, Control (complete)				$ 137.80
24	W10169961A		Filter, Grease   (Replaces: W10169961)			Immediately	$ 41.83
25	W11186486		Transformer   (Replaces: 8186686)			Immediately	$ 229.15
26	WPW10298151		Bulb, Halogen   (Replaces: W10298151)			Immediately	$ 29.28
NI	8186710		Hardware, Mounting				$ 18.35
