SELECT A DIAGRAM

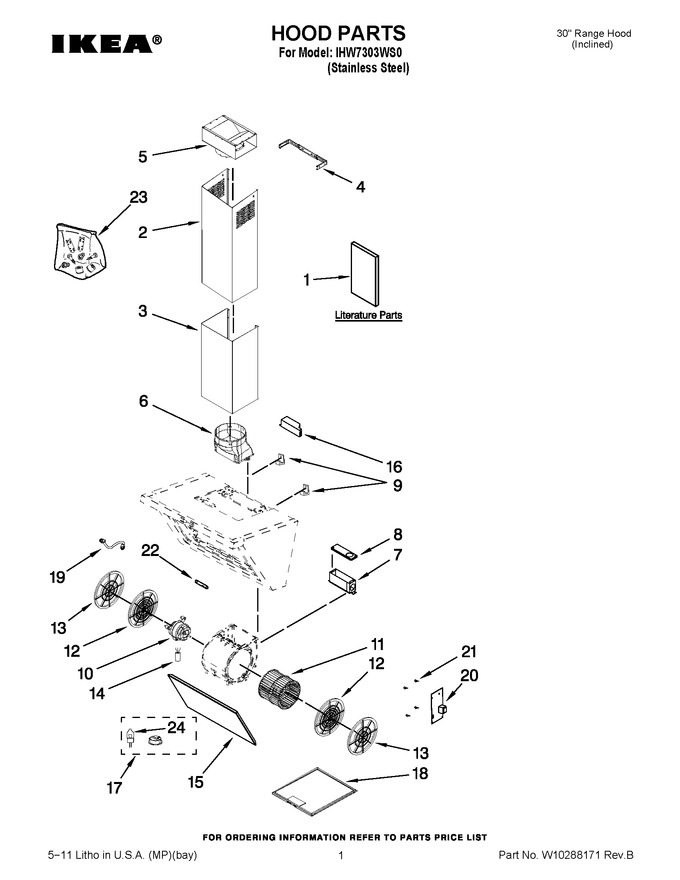

01 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10177447		Use & Care Guide (30`` Hood)		Appelez-nous	-
2	W10256653		Chimney, Upper				$ 174.95
3	W10256652		Chimney, Lower				$ 174.95
4	8190843		Bracket, Mounting				$ 36.86
5	W10256660		Duct, Air Diverter		Appelez-nous	-
6	W10169956		Duct, Air Connect		Appelez-nous	-
7	W10256658		Box, Control		Appelez-nous	-
8	8186704		Cover		Appelez-nous	-
9	8190805		Brckt, Mounting				$ 5.86
10	W10256656		Motor, Fan				$ 256.28
11	W11260620		Wheel, Blower   (Replaces: W10256659)				$ 146.73
12	W10256655		Endcap, Blower		Appelez-nous	-
13	W10169962		Filter, Charcoal		Appelez-nous	-
14	W10256657		Capacitor			Immediately	$ 94.37
15	W10256654		Panel				$ 217.12
16	W11186486		Transformer (110-127v,20-6w)   (Replaces: 8186686)			Immediately	$ 229.15
17	WP8186678		Bulb Assembly   (Replaces: 8186678)				$ 73.21
18	W11246395		Filter, Aluminium   (Replaces: W10256662)				$ 87.17
19	W10211255		Harness, Wire		Appelez-nous	-
20	WPW10211246		Variator, Elec.   (Replaces: W10211246)				$ 563.38
21	8190833		Support, Variator				$ 7.46
22	W10211247		Board, Circuit				$ 69.06
23	W10256663		Pack, Document				$ 61.21
24	WPW10298151		Bulb, Halogen   (Replaces: W10298151)			Immediately	$ 29.28

    View Diagram in Separate Window       Print Part List
