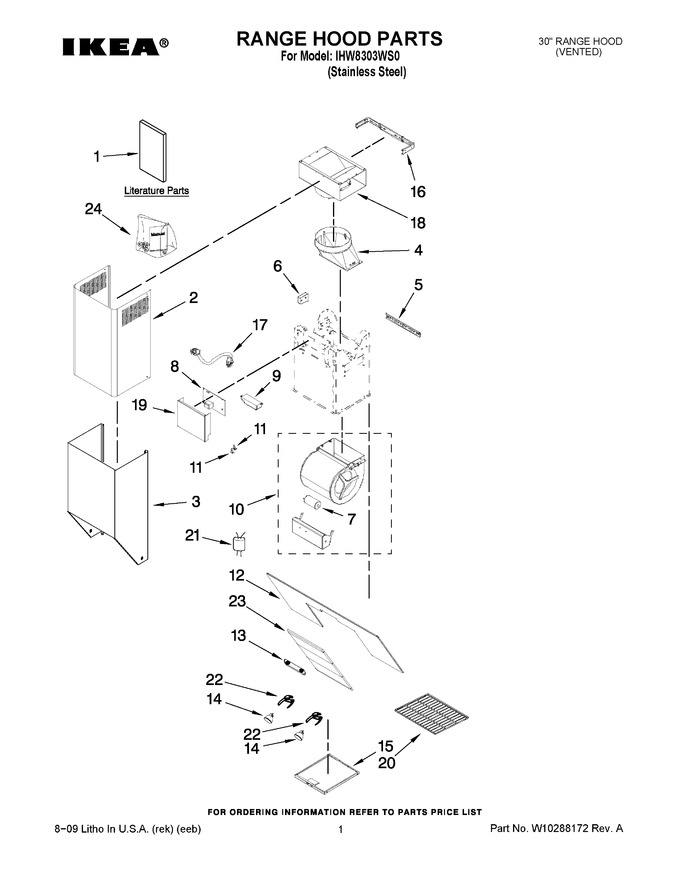

01 - Range Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10177449		Use & Care Guide		Appelez-nous	-
2	W10211999		Chimney, Upper		Appelez-nous	-
3	W10211997		Chimney, Lower		Appelez-nous	-
4	W10169956		Duct, Air		Appelez-nous	-
5	8186681		Bracket, Hanger				$ 31.06
6	8190841		Hook Pkg				$ 10.10
7	8186677		Capacitor				$ 235.77
8	WPW10211246		Cntrl, Electronic   (Replaces: W10211246)				$ 563.38
9	W11186486		Transformer   (Replaces: 8186686)			Immediately	$ 229.15
10	W10212003		Motor, Complete				$ 491.47
11	8190833		Bracket, Mounting				$ 7.46
12	W10212000		Panel, Bottom				$ 278.89
13	W10211247		Panel, Control				$ 69.06
14	W10211248		Lamp				$ 36.45
15	WP8190836		Filter, Grease   (Replaces: 8190836)			Immediately	$ 120.09
16	W10211251		Bracket, Mounting Chimney Fastening		Appelez-nous	-
17	W10211255		Harns-wire		Appelez-nous	-
18	8186680		Duct-air (diverter)				$ 190.30
19	W10211254		Cover, Transformer		Appelez-nous	-
20	W10212002		Panel, Bottom		Appelez-nous	-
21	W10212004		Filter		Appelez-nous	-
22	W10211249		Holder, Lamp				$ 41.29
23	8190968		Filter, Carbon				$ 188.53
24	W10256664		Pack, Document		Appelez-nous	-
