SELECT A DIAGRAM

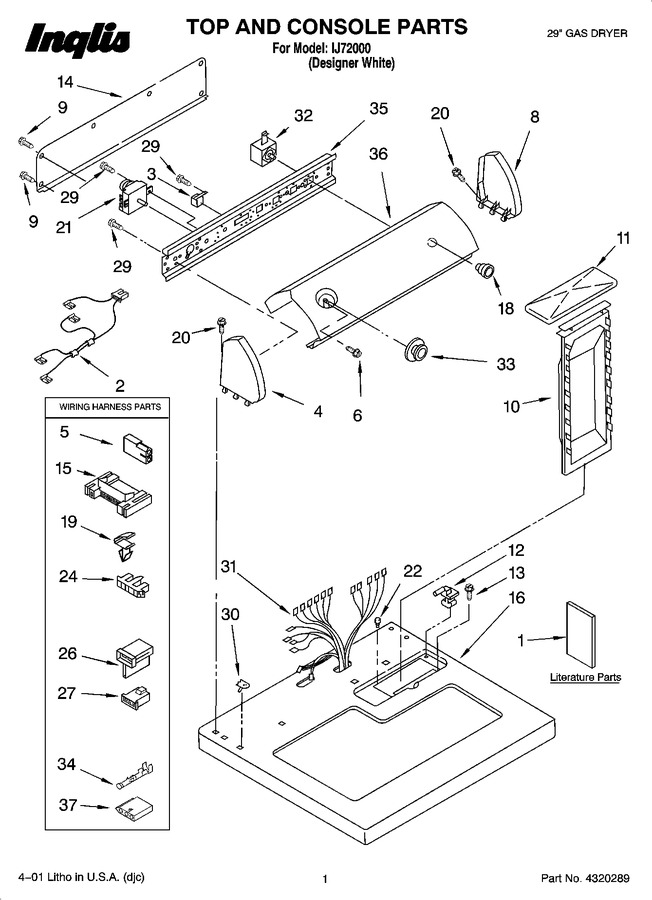

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3406684		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	LIT3978907		Instructions, Installation		Appelez-nous	-
1	LIT8314836		Literature Parts (use & Care Guide)		Appelez-nous	-
2	3397692		Wire, Jumper		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	3400859		Screw, Grounding				$ 13.88
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8271390		Top		Appelez-nous	-
18	WP3957799		Knob, Control   (Replaces: 8271339)				$ 52.44
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
20	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
21	WP3976584		Timer Assembly (60 Hz.)   (Replaces: 3976584)				$ 362.08
22	297535		Bumper, Lint Lid		Appelez-nous	-
24	3397269		Connector, Timer				$ 25.55
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	3394297		Harness, Wiring		Appelez-nous	-
32	3395384		Switch, Push-to-start		Appelez-nous	-
33	WP3957754		Timer Knob Assembly   (Replaces: 8312687)				$ 59.87
34	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
35	8271418		Bracket, Control				$ 57.15
36	3977841		Panel, Control		Appelez-nous	-
37	3936144		Connector				$ 21.22
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	3404351		Dry Rack				$ 89.81

    View Diagram in Separate Window       Print Part List
