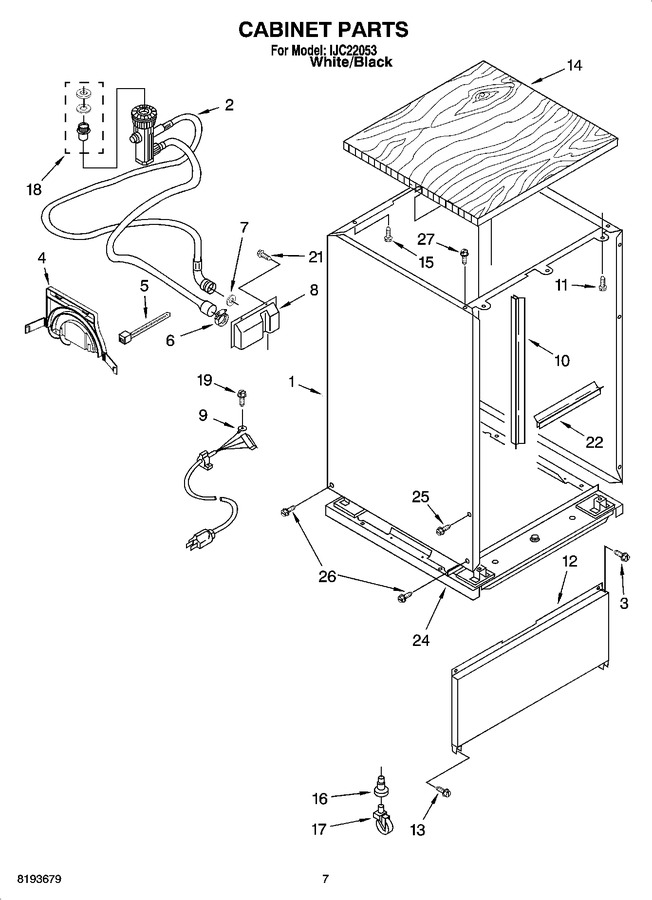

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Cabinet Parts


07 - Dishrack Parts


08 - Miscellaneous Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3378111		Shell Assembly (white)				$ 261.95
2	WPW10273574		Coupler Assembly   (Replaces: 8275398)			Immediately	$ 204.68
3	WP302868		Screw   (Replaces: 302868)			Immediately	$ 7.75
4	3378109		Saddle, Hose		Appelez-nous	-
5	WPW10339879		Clip, Strap   (Replaces: 309330)				$ 7.90
6	WP3367052		Clamp, Hose   (Replaces: 3367052)				$ 8.32
7	WP16123		Washer   (Replaces: 16123)				$ 7.70
8	3371343		Housing, Hose				$ 44.36
9	3379199		Cord, Power		Appelez-nous	-
10	3378125		Protector-edge, Divider		Appelez-nous	-
11	WP3373329		Screw   (Replaces: 3373329)				$ 7.68
12	3372381		Shroud, Caster Assembly				$ 67.74
13	3370544		Screw				$ 8.06
14	3373198		Panel, Top		Appelez-nous	-
15	WP681414		Screw (2)   (Replaces: 304428)			Immediately	$ 7.85
16	300450		Socket, Caster		Appelez-nous	-
17	300424		Caster		Appelez-nous	-
18	30168LF		Adapter Faucet   (Replaces: 3374592)			Immediately	$ 12.15
19	WP681414		Screw   (Replaces: 3372525)			Immediately	$ 7.85
21	3370826		Screw (2)		Appelez-nous	-
22	3378126		Protector-edge, Divider		Appelez-nous	-
24	3370551		Frame Assembly		Appelez-nous	-
25	3371635		Screw, 8-18 X 1/2		Appelez-nous	-
26	3371644		Screw, 8-18 X 5/8				$ 8.65
27	302251		Screw		Appelez-nous	-
