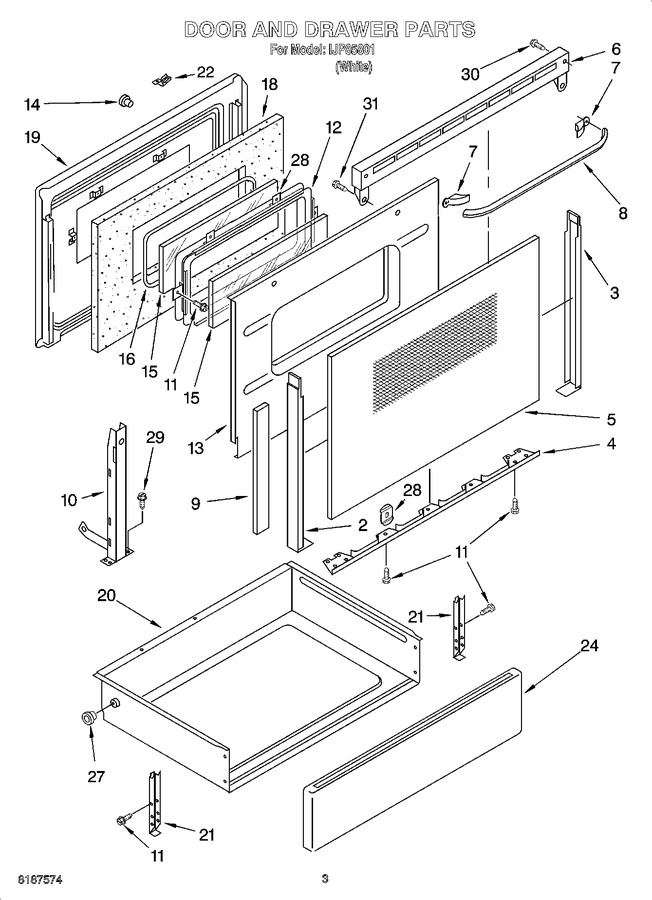

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9782003PW		Trim, Door-left		Appelez-nous	-
3	9782004PW		Trim, Door-right		Appelez-nous	-
4	9781209PW		Trim, Door Bottom		Appelez-nous	-
5	9781781PW		Glass, Door		Appelez-nous	-
6	9753498GW		Vent, Door		Appelez-nous	-
6	9781659		Gasket		Appelez-nous	-
7	9781575		Endcap, Handle (2)		Appelez-nous	-
8	9751690PW		Handle, Door-white		Appelez-nous	-
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	WP9782033		Hinge, Door R Or L   (Replaces: 9782033)			Immediately	$ 231.85
11	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
12	9781601		Frame, Glass		Appelez-nous	-
13	9781588		Shield Door		Appelez-nous	-
14	238614		Bumper, Rubber   (Replaces: 9780771)				$ 84.79
15	WP9781654		Glass, Pyro (2)   (Replaces: 9781654)			Immediately	$ 117.98
16	9755178		Seal, Window		Appelez-nous	-
18	9754007		Insulation		Appelez-nous	-
19	9781599GM		Liner, Door		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
22	9750676		Retainer, Door (2)		Appelez-nous	-
24	9782108PW		Front, Drawer		Appelez-nous	-
27	WP90296		Clip   (Replaces: 90296)				$ 8.24
27	814229		Roller, Drawer (2)   (Replaces: 423713)			Immediately	$ 56.92
28	9781502		Spacer, Door (8)		Appelez-nous	-
29	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
30	9781196		Screw,10-24 X 1.25		Appelez-nous	-
31	9780266		Screw, 10-24 X 5/8		Appelez-nous	-
