01 - Cooktop Parts

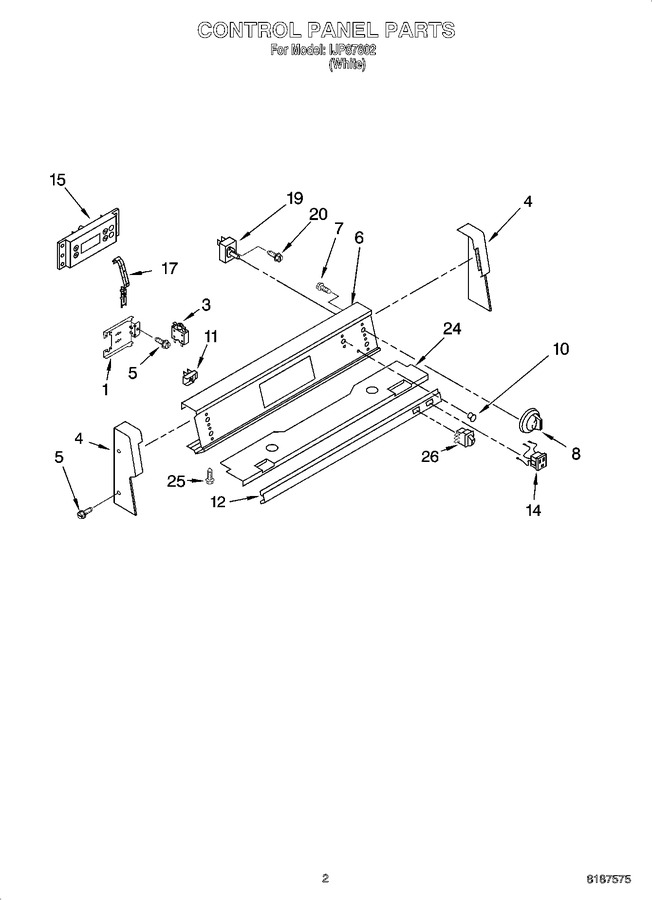

02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts
06 - Hidden Bake Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9781881 | Bracket, Timer |
|
- | |||||
| 3 | 3191073 | Breaker, 15 Amp |
|
- | |||||
| 4 | 9752423FW | End Cap (right) |
|
- | |||||
| 4 | 9752422FW | End Cap (left) |
|
- | |||||
| 5 | 9780265 | Screw, 10-16 X 3/3 |
|
- | |||||
| 6 | 9754236 | Panel, Control |
|
- | |||||
| 7 | 9780852 | Screw, 8-18 X 3/8 |
|
- | |||||
| 8 | 9750272FW | Knobs, Control |
|
- | |||||
| 10 | WP9750343 | Lens, Indicator (Replaces: 9752589) |
|
Immediately | $ 6.00 | ||||
| 11 | 313102 | Light Indicator |
|
$ 66.48 | |||||
| 12 | 9781883PW | Trim Strip |
|
- | |||||
| 14 | 9751480FW | Outlet, Untimed |
|
- | |||||
| 15 | 9782084CW | Timer (Replaces: 9754266CW) |
|
$ 469.23 | |||||
| 17 | 9781754 | Bracket, Timer |
|
- | |||||
| 19 | WP9750638 | Infinite Switch (1400w) (Replaces: 9750638) |
|
Immediately | $ 113.89 | ||||
| 19 | WP9750639 | Infinite Switch (1700w) (Replaces: 9750639) |
|
Immediately | $ 152.66 | ||||
| 19 | WP9755173 | Infinite Switch (dual, (2)) (Replaces: 9755173) |
|
Immediately | $ 149.46 | ||||
| 20 | WP3400882 | Screw, 8-32 X 3/16 (Replaces: 3400816) |
|
Immediately | $ 7.55 | ||||
| 24 | 9752439 | Base, Console |
|
- | |||||
| 25 | WP3400832 | Screw, 8-18 X 1/2 (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 26 | 9750995 | Insulation, Control Panel |
|
- | |||||
| 26 | 9753692FW | Switch, Rocker (illuminated) |
|
- |
