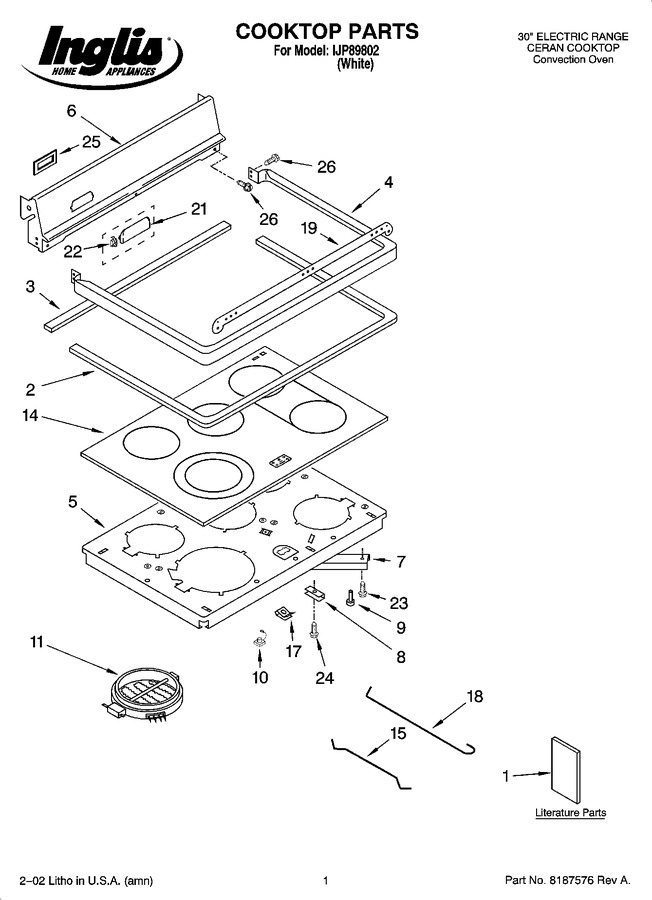

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts


06 - Hidden Bake Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9782238		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT9781875		Literature Parts (service Instructions)		Appelez-nous	-
1	LIT9754172		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9752777		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
2	WP9780939		Gasket, Cooktop (front & Sides)   (Replaces: 9780939)			Immediately	$ 67.59
3	9781614		Rear Gasket				$ 47.02
4	9750456PW		Frame, Cooktop		Appelez-nous	-
5	9753941		Support, Element		Appelez-nous	-
6	9752337GW		Back Splash		Appelez-nous	-
7	9753675		Brace, Support		Appelez-nous	-
8	9753691		Support Clips (4)		Appelez-nous	-
9	238614		Bumper-white (4)   (Replaces: 9750969)				$ 84.79
10	9781935		Hot Light		Appelez-nous	-
11	W10823695		Element, Surface (bridge Element)   (Replaces: 9753999)			Immediately	$ 323.94
11	WP8523700		Element, Surface (warm Zone)   (Replaces: 9754274)			Immediately	$ 185.60
11	W10823692		Element, Surface (1000/2400w - Lf)   (Replaces: 8523693)			Immediately	$ 227.59
11	W10823699		Element, Surface (1500w - Lr)   (Replaces: 8523697)			Immediately	$ 169.95
14	9754255CW		Cooktop, Ceran				$ 365.95
15	9781460		Rod, Small Ceran Element		Appelez-nous	-
17	WP9781235		Speed Nut   (Replaces: 9781235)				$ 12.56
18	9781459		Rod, Large Ceran Element		Appelez-nous	-
19	9780585		Wire Guard				$ 35.21
21	9753040CW		Cover Vent		Appelez-nous	-
22	3149190		Clip, Vent Cover		Appelez-nous	-
23	9780272		Screw		Appelez-nous	-
24	423248		Screw		Appelez-nous	-
25	9750767		Gasket		Appelez-nous	-
26	9753677		Spring, Warm Zone		Appelez-nous	-
26	3149333		Screw				$ 5.33
