SELECT A DIAGRAM

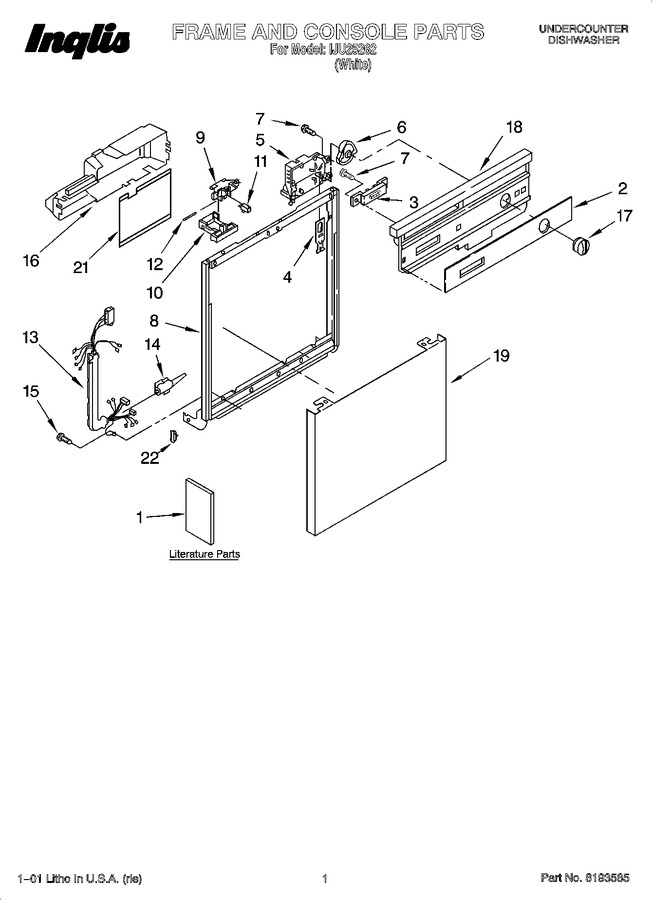

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts


07 - Miscellaneous Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8274630		Literature Parts (guide, Energy)		Appelez-nous	-
1	LIT8051229		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3367007		Literature Parts (instructions, Installation (supplement) (locating Your Water Supply))		Appelez-nous	-
1	LIT0677967		Do-it Yourself Manual		Appelez-nous	-
1	LIT8057397		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8051172		Literature Parts (diagram, Wiring)		Appelez-nous	-
2	8057372		Insert, Console		Appelez-nous	-
3	8051162		Switch, 5 Button		Appelez-nous	-
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WP8535368		Timer   (Replaces: 3376032)				$ 345.30
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.96
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3372231		Lever, Latch		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8051141		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	3379954		Cover, Timer		Appelez-nous	-
17	3375349		Knob, Timer				$ 46.12
18	8055365		Console (includes Item 2)		Appelez-nous	-
19	3379376		Panel Front				$ 116.81
21	3379671		Shield, Control Cover		Appelez-nous	-
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01

    View Diagram in Separate Window       Print Part List
