01 - Cooktop Parts

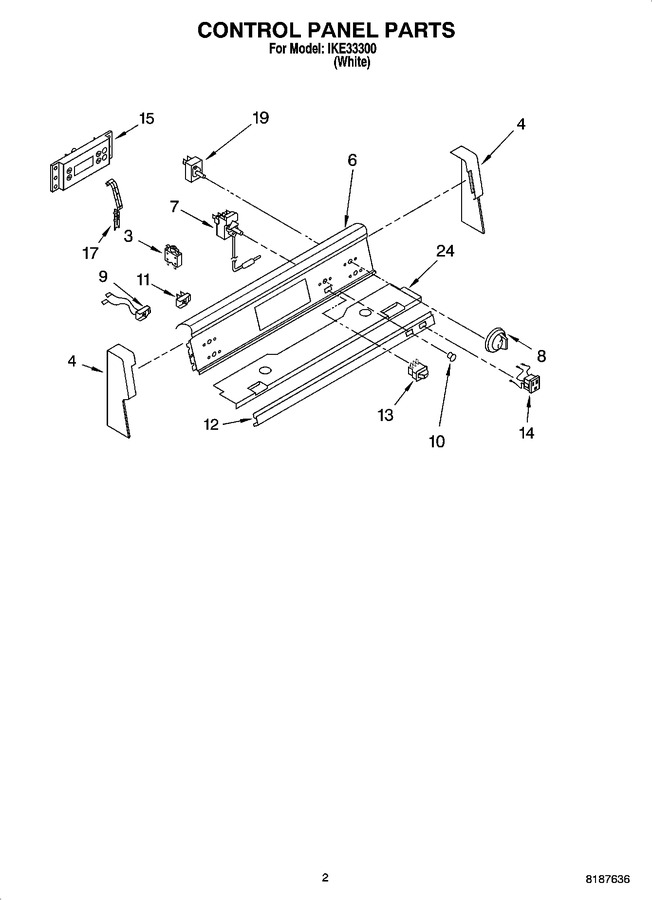

02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 3191073 | Breaker, 15 Amp |
|
- | |||||
| 4 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 4 | 9752417FW | End Cap (right) |
|
- | |||||
| 4 | 9752416FW | End Cap (left) |
|
- | |||||
| 6 | 9780852 | Screw, (2) 8 X 3/8 |
|
- | |||||
| 6 | 9755332 | Panel, Control |
|
- | |||||
| 7 | 3400853 | Screw (2) |
|
- | |||||
| 7 | 6700G0001 | Thermostat (Replaces: 9750401) |
|
Immediately | $ 328.86 | ||||
| 8 | 9750272FW | Knobs, Control (5) |
|
- | |||||
| 9 | 9780801 | Light Module (oven) |
|
- | |||||
| 10 | WP9750343 | Lens, Indicator (3) (Replaces: 9752589) |
|
Immediately | $ 6.00 | ||||
| 11 | 313102 | Light, Indicator (2) (cooktop) |
|
$ 66.48 | |||||
| 12 | 9752442PW | Trim Strip |
|
- | |||||
| 13 | 3191100FW | Switch, Oven Light |
|
- | |||||
| 14 | 9751480FW | Outlet, Untimed |
|
- | |||||
| 15 | 9780272 | Screw, (2) 10 X 1/2 |
|
- | |||||
| 15 | 9781713 | Timer |
|
- | |||||
| 17 | 9780265 | Screw, 10 X 3/8 |
|
- | |||||
| 17 | 9781754 | Bracket, Timer |
|
- | |||||
| 19 | WP3400882 | Screw (8) 8-32 X 3/16 (Replaces: 3400816) |
|
Immediately | $ 7.55 | ||||
| 19 | WP9750641 | Infinite Switch (2400w (2)) (Replaces: 9750641) |
|
Immediately | $ 103.02 | ||||
| 19 | WP9750638 | Infinite Switch (1400w (2)) (Replaces: 9750638) |
|
Immediately | $ 113.89 | ||||
| 24 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 24 | 9752439 | Base, Console |
|
- | |||||
| 24 | WP3400832 | Screw (3) 8 X 3/8 (Replaces: 3196168) |
|
Immediately | $ 8.18 |
