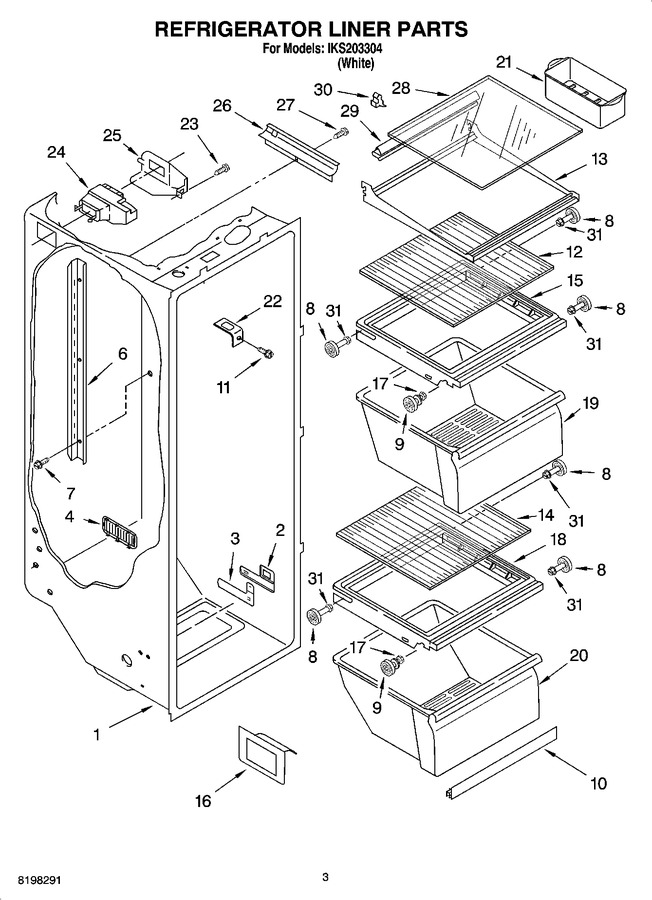

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2194744 | Escutcheon, Meat Pan Control |
|
$ 95.84 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 2182147 | Louver |
|
- | |||||
| 6 | 2206270 | Shelf Ladder (2) |
|
- | |||||
| 7 | WP488729 | Screw (6) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 8 | WP2196483 | Stud Assembly (Replaces: 2196483) |
|
$ 10.87 | |||||
| 9 | W11223328 | Stud Assembly (Replaces: 2196485) |
|
Immediately | $ 14.77 | ||||
| 10 | 2209704 | Extension |
|
- | |||||
| 11 | WP488488 | Screw (2) (Replaces: 489290) |
|
$ 8.52 | |||||
| 12 | W10864399 | Glass, Cover (Replaces: 2174150) |
|
$ 232.03 | |||||
| 13 | 2173178 | Shelf, Cantilever |
|
- | |||||
| 14 | W10864399 | Glass, Cover (Replaces: 2179259) |
|
$ 232.03 | |||||
| 15 | W10508993 | Crisper Cover (Replaces: 2209698) |
|
$ 305.85 | |||||
| 16 | 2179350 | Deflector |
|
$ 85.89 | |||||
| 17 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 9.14 | |||||
| 18 | 2217039 | Meat Pan Cover |
|
- | |||||
| 19 | WP2188661 | Crisper Pan (Replaces: 2196481) |
|
Immediately | $ 162.07 | ||||
| 20 | WP2188664 | Meat Pan (Replaces: 2196162) |
|
Immediately | $ 92.70 | ||||
| 21 | W10136387A | Egg Bin (Replaces: 2216624) |
|
$ 19.54 | |||||
| 22 | WP2256085 | Bracket, Retainer (Replaces: 1123919) |
|
$ 36.10 | |||||
| 23 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 24 | WPW10151374 | Air Diffuser Assembly (Replaces: 2209753) |
|
Immediately | $ 104.77 | ||||
| 25 | 2152019 | Air Diffuser Cover |
|
$ 90.33 | |||||
| 26 | 2150330 | Cover, Conduit |
|
- | |||||
| 27 | W10759522 | Screw (Replaces: 486298) |
|
$ 8.24 | |||||
| 28 | 2177978 | Glass, Shelf |
|
- | |||||
| 29 | 1125594 | Retainer |
|
- | |||||
| 30 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 10.94 | |||||
| 31 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 8.10 |
