| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

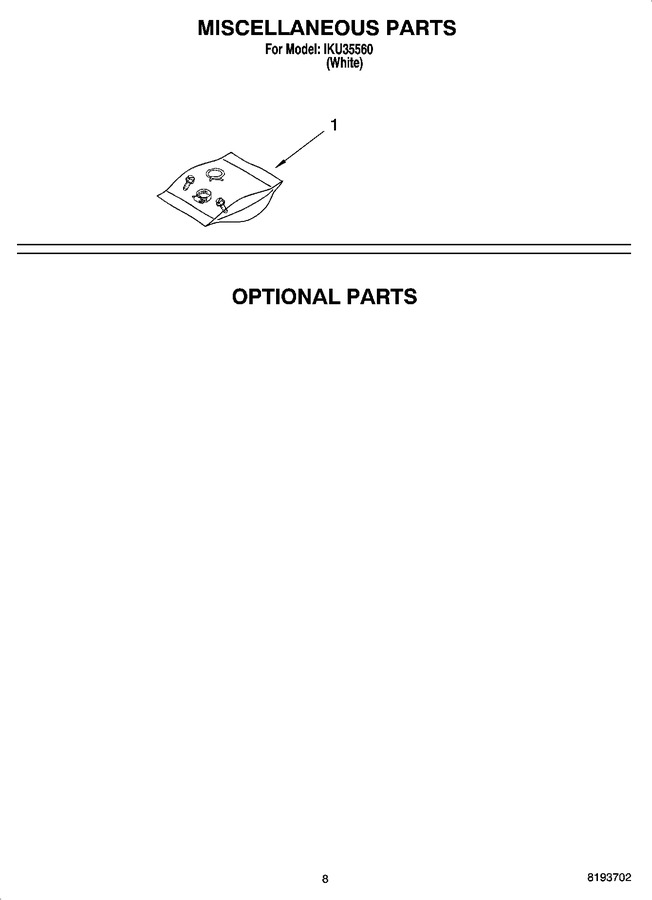

| 1 | 3369816 | Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps |
|
$ 34.93 | |||||
| 4318050 | Door Spring Kit (heavy Duty) |
|
$ 23.68 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 675679 | Tine Tip Repair Kit (white - Enough For Two Complete Dishracks) |
|
Immediately | $ 34.95 | |||||
| WP676455 | Vinyl Touch-up (grey) (Replaces: 676455) |
|
Immediately | $ 43.34 | |||||
| 676458 | Tine Tip Repair Kit (grey Enough For Two Complete Dishracks) |
|
$ 43.49 | ||||||
| W10841140 | Adhesive, Tine Tips (Replaces: 675652) |
|
Immediately | $ 26.17 | |||||
| 4317925 | Side Panel Kits (white) |
|
- | ||||||
| 4317929 | Side Panel Kits (almond) |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350956 | Paint, Pressurized Spray (12 Oz.) (almond) |
|
$ 48.61 | ||||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 53.90 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 84.73 | ||||||
| 978883 | Paint, Touch-up (1 Qt.) (almond (uncut)) |
|
- | ||||||
| 799340 | Paint, Touch-up (1 Qt.) (black (uncut)) |
|
- | ||||||
| WP676453 | Vinyl Touch-up (white) (Replaces: 676453) |
|
Immediately | $ 50.70 |
