01 - Top And Console Parts

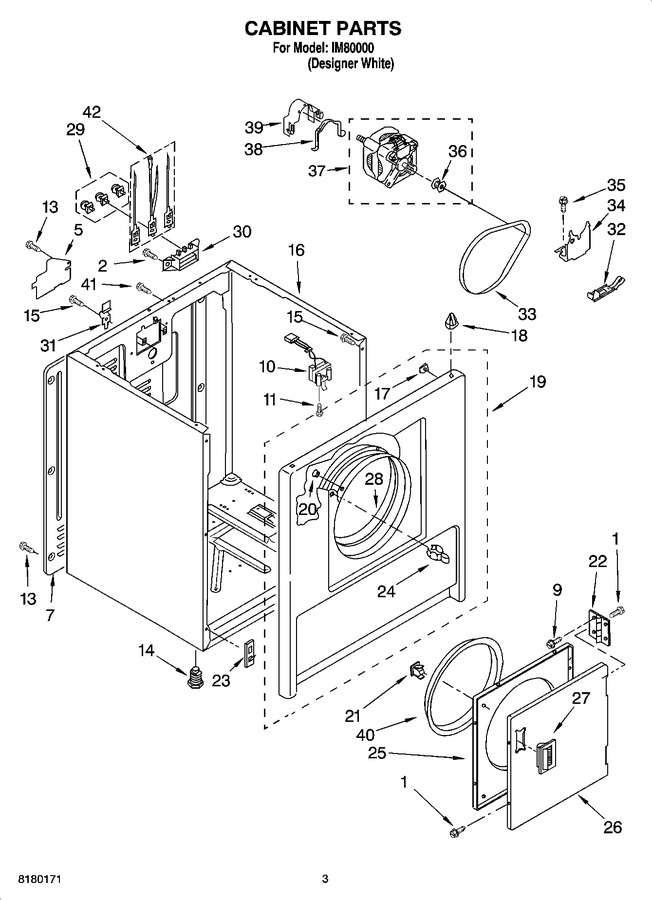

02 - Cabinet Parts
03 - Bulkhead Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP694091 | Screw, 8-18 X 3/8 (Replaces: 694091) |
|
$ 7.55 | |||||
| 2 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 5 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 7 | 3396807 | Panel, Rear |
|
- | |||||
| 9 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 8.11 | |||||
| 10 | WP3406102 | Door Switch Assembly (Replaces: 3406102) |
|
$ 41.66 | |||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 8.57 | |||||
| 13 | WP693995 | Screw, Rear Panel Mounting (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 14 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 14 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 15 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 16 | 8533643 | Cabinet (Replaces: 8530603) |
|
$ 419.22 | |||||
| 17 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 18 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 13.31 | ||||
| 19 | 693197 | Front Panel Assembly |
|
- | |||||
| 20 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 21 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
$ 6.20 | |||||
| 22 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 9.32 | |||||
| 23 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 24 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 25 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 207.46 | |||||
| 26 | WP348205 | Door, Front (Replaces: 348205) |
|
Immediately | $ 154.76 | ||||
| 27 | WP686711 | Handle, Door (Replaces: 686711) |
|
Immediately | $ 8.35 | ||||
| 28 | 279264 | Seal & Bearing Assembly (Replaces: 8066123) |
|
Immediately | $ 74.52 | ||||
| 29 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 30 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 31 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 8.21 | |||||
| 32 | WP691366 | Idler & Pulley Assembly (Replaces: 3394332) |
|
Immediately | $ 22.47 | ||||
| 33 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 18.15 | ||||
| 34 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 35 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 14.04 | ||||
| 36 | WP8066184 | Pulley, 60 Hz. (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 37 | 279827 | Motor Assembly 60 Hz. (Replaces: 8538262) |
|
Immediately | $ 191.95 | ||||
| 38 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 39 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 40 | W11613302 | Seal, Door (Replaces: 3390734) |
|
$ 56.31 | |||||
| 41 | W10850756 | Screw, 10-32 X 5/8 (external Ground) (Replaces: 697776) |
|
$ 8.20 | |||||
| 42 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 29) |
|
Immediately | $ 106.04 |
