SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts

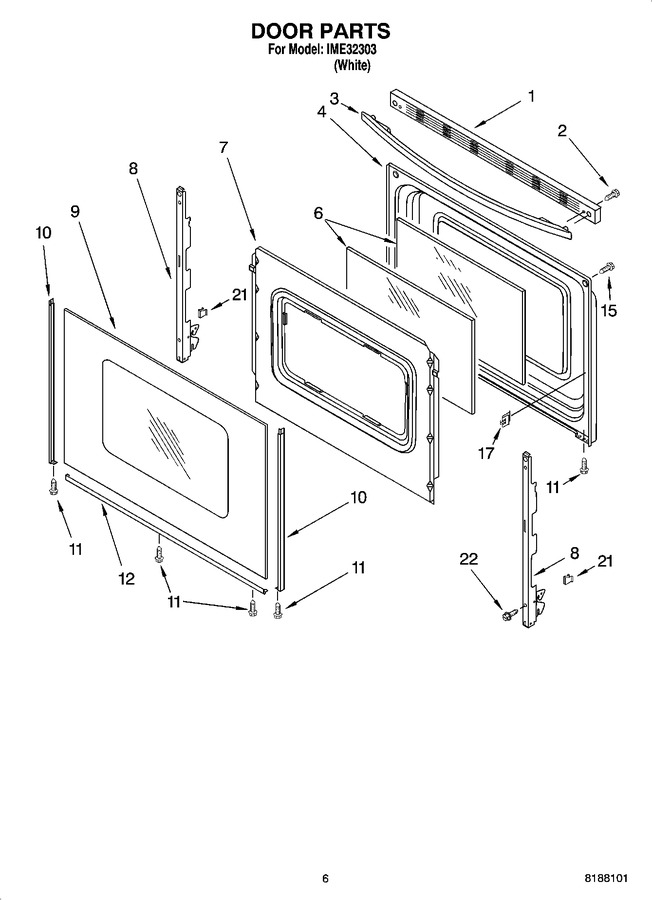

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8522433		Trim, Top (white)		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	WPW10202216		Handle, Door (white)   (Replaces: 8522444)				$ 370.67
4	3186292		Liner, Door		Appelez-nous	-
6	WP8053948		Window, Inner   (Replaces: 9758162)				$ 178.28
7	9759622		Retainer, Insul.		Appelez-nous	-
8	8053808		Hinge, Door (2)				$ 78.89
9	WP8053834		Glass, Outer (white)   (Replaces: 8053480)				$ 291.86
10	WP8523172		Trim, Side (white Left Hand)   (Replaces: 8523172)			Immediately	$ 69.93
10	WP8523166		Trim, Side (white Right Hand)   (Replaces: 8523166)			Immediately	$ 84.23
11	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
12	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 61.37
15	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 8.42
17	3196025		Clip, Glass (6)				$ 20.10
21	3196925		Clip, Door Stop				$ 9.06
22	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 54.01
	3184020		Wire, Ground   (Replaces: 311227)				$ 86.92
	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
	9756752		Harness, Wire (sensor)				$ 40.07
	9756350		Cord, Power				$ 60.82
	9756779		Relief, Strain		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 14.29
	WP112432		Nut, (3)   (Replaces: 112432)				$ 8.63
	WP3196174		Ground Screw (main Back)   (Replaces: 3196174)			Immediately	$ 8.44
	814381		Pin Kit-dr Removal				$ 11.28
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 94.14
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	3184478		Cleaner, Glass		Appelez-nous	-
	W11839019		Anti-tip Kit   (Replaces: 9757976)			Immediately	$ 28.54
	WPW10295595		Harness, Wire (cooktop)   (Replaces: 3196793)			Immediately	$ 156.06
	9758197		Harness, Wire (ez175)				$ 148.29

    View Diagram in Separate Window       Print Part List
