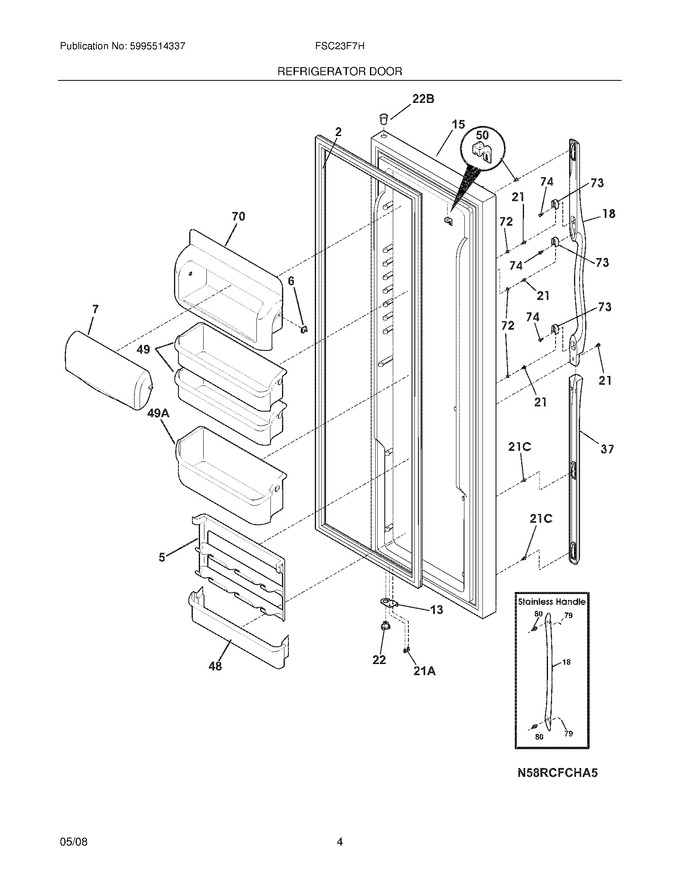

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 47.19
7	241515606		Door-dairy   (Replaces: 241515601)				$ 45.51
13	240581905		Door Stop,black ,ref				$ 66.94
15	241534533		Door-refr,stainless ,complete Assy				$ 759.78
18	240536818		Handle-door,stainless Steel ,with Insert,& Set Screw				$ 202.00
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 17.33
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 30.26
48	241511701		Bin-door,ref			Immediately	$ 74.68
49	241505301		Bin-door,2-liter			Immediately	$ 84.89
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 197.66
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 36.67
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 13.20
22B	240328404		Bearing-hinge,black ,upper				$ 25.41
49A	241780001		Liner,bin ,gallon				$ 63.74
49A	241505501		Bin-door,gallon			Immediately	$ 110.03
F2	241510207		Gasket-refr Door,black ,magnetic   (Replaces: 241510203)			Immediately	$ 107.93
NI	241779901		Liner,bin ,2 Liter				$ 33.84
NI	241601001		Wrench,allen		Appelez-nous	-
