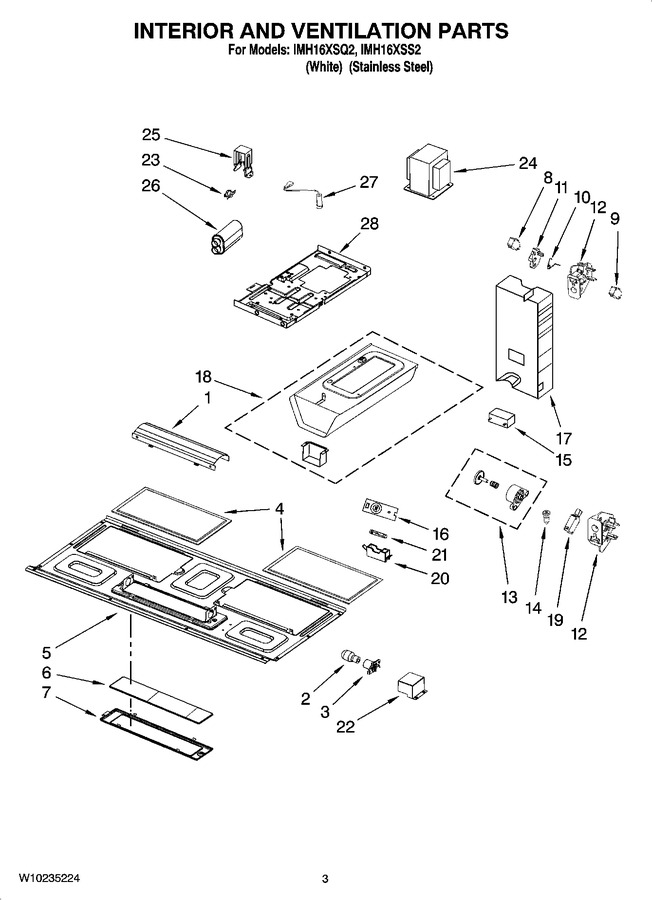

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206387		Reflector, Lamp		Appelez-nous	-
2	8206232A		Lamp   (Replaces: 8206232)			Immediately	$ 7.71
3	8206374		Holder, Lamp		Appelez-nous	-
4	8206229A		Filter, Grease   (Replaces: 8206229)			Immediately	$ 18.61
5	8206386		Plate, Bottom		Appelez-nous	-
6	8206376		Glass, Lamp		Appelez-nous	-
7	8206375		Holder, Glass		Appelez-nous	-
8	W10211972		Switch, Micro V15t16-cz200			Immediately	$ 52.40
9	W10269458		Switch, Micro V15t16-cc200   (Replaces: W10211973)			Immediately	$ 40.11
10	W10156812		Spring, Interlock			Immediately	$ 12.14
11	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 17.83
12	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07
12	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
13	W10197758		Piston Assembly			Immediately	$ 93.36
14	8206180		Screw				$ 13.47
15	W11405832		Capacitor, 125 V   (Replaces: 8206357)				$ 28.60
16	W10163422		Thermistor (pcba)				$ 179.70
17	W10163421		Plate, Side				$ 7.84
18	W10163423		Chassis Assembly		Appelez-nous	-
19	W10211974		Switch, Micro V15t-16cp200			Immediately	$ 60.44
20	W10117908		Holder, Fuse				$ 52.71
21	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
22	8206359		Terminal Cvr, Lamp		Appelez-nous	-
23	W10269232		Thermostat   (Replaces: 8206379)				$ 74.28
24	W10165829		Transformer, H.v.		Appelez-nous	-
25	W10532063		Bracket, Capacitor   (Replaces: W10156817)				$ 29.69
26	8206562		Capacitor, H.v.			Immediately	$ 120.92
27	W11256462		Diode, H.v.   (Replaces: W10163432)			Immediately	$ 34.86
28	W10163420		Chassis		Appelez-nous	-
