01 - Control Panel Parts


02 - Door Parts

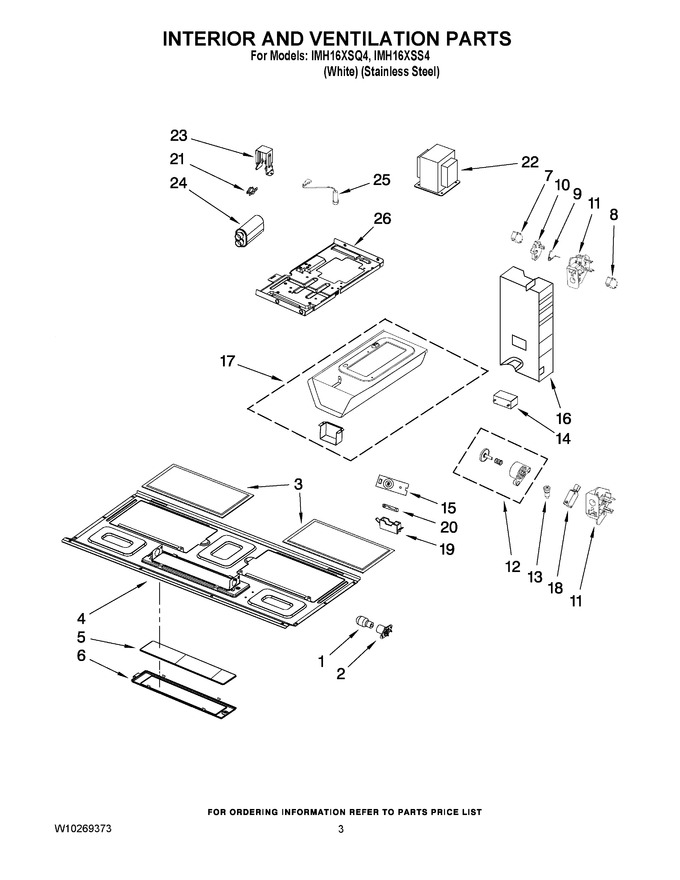

03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206232A		Lamp   (Replaces: 8206232)			Immediately	$ 7.71
2	8206374		Holder, Lamp		Appelez-nous	-
3	8206229A		Filter, Grease   (Replaces: 8206229)			Immediately	$ 18.61
4	W10210885		Plate, Bottom		Appelez-nous	-
5	8206376		Glass, Lamp		Appelez-nous	-
6	8206375		Holder, Glass		Appelez-nous	-
7	W10211972		Switch, Micro V15t16-cz200			Immediately	$ 52.40
8	W10269458		Switch, Micro V15t16-cc200   (Replaces: W10211973)			Immediately	$ 40.11
9	W10156812		Spring, Interlock			Immediately	$ 12.14
10	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 17.83
11	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07
11	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
12	W10197758		Piston Assembly			Immediately	$ 93.36
13	8206180		Screw				$ 13.47
14	W11405832		Capacitor, 125 V   (Replaces: 8206357)				$ 28.60
15	W10163422		Thermistor (pcba)				$ 179.70
16	W10163421		Plate, Side				$ 7.84
17	W10163423		Chassis Assembly		Appelez-nous	-
18	W10211974		Switch, Micro V15t-16cp200			Immediately	$ 60.44
19	W10117908		Holder, Fuse				$ 52.71
20	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
21	W10269232		Thermostat				$ 74.28
22	W10165829		Transformer, H.v.		Appelez-nous	-
23	W10532063		Bracket, Capacitor   (Replaces: W10156817)				$ 29.69
24	8206562		Capacitor, H.v.			Immediately	$ 120.92
25	W11256462		Diode, H.v.   (Replaces: W10163432)			Immediately	$ 34.86
26	W10313269		Chassis   (Replaces: W10269226)		Appelez-nous	-
