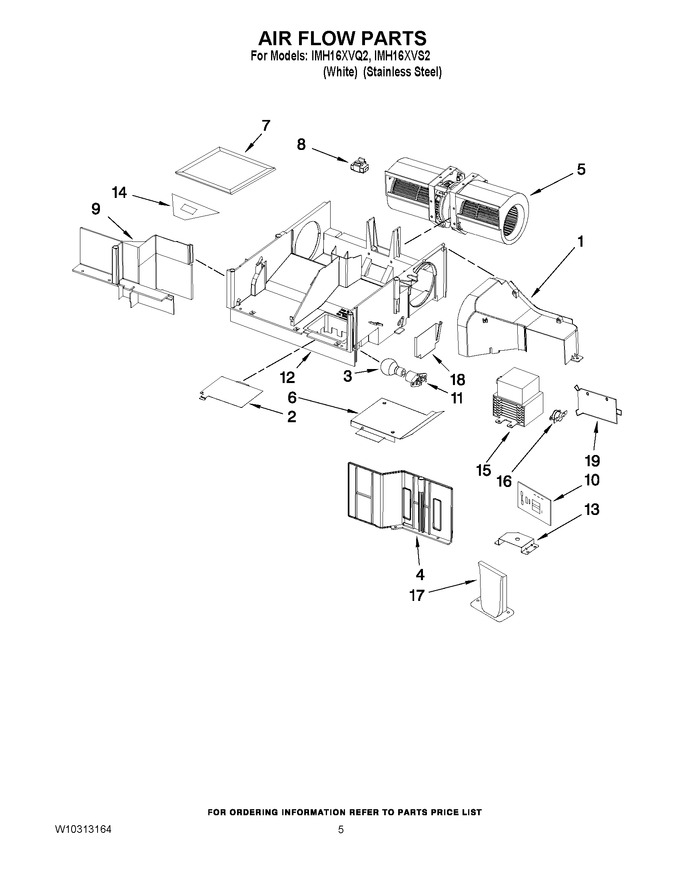

04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206340		Deflector, Air				$ 146.24
2	8206382		Cover, Lamp				$ 8.74
3	8206232A		Lamp   (Replaces: 4393681)			Immediately	$ 7.34
4	W10269231		Cover, Side Inlet				$ 93.43
5	W10113981		Motor, Fan Assy		Appelez-nous	-
6	W10138797		Air Guide				$ 90.67
7	8206230A		Filter, Charcoal   (Replaces: 8206230)			Immediately	$ 19.25
8	W10110862		Mounting, Nut		Appelez-nous	-
9	W10138800		Air Guide		Appelez-nous	-
10	W10422269		Filter   (Replaces: W10269465)			Immediately	$ 32.18
11	WPW10210878		Holder, Lamp   (Replaces: W10210878)			Immediately	$ 33.21
12	W10269468		Base Plate, Air Guide				$ 45.76
13	W10532064		Brkt-mntg,filter   (Replaces: W10313270)		Appelez-nous	-
14	W10139750		Socket, Motor Wire		Appelez-nous	-
15	W10754299		Magnetron   (Replaces: W10216360)			Immediately	$ 231.21
16	W10598693		Thermstat   (Replaces: 8206342)				$ 62.15
17	W11381953		Plate, Water Proof   (Replaces: W10269467)		Appelez-nous	-
18	W10269469		Cover, Right Duct				$ 79.12
19	W10313274		Bracket, Board				$ 30.78
