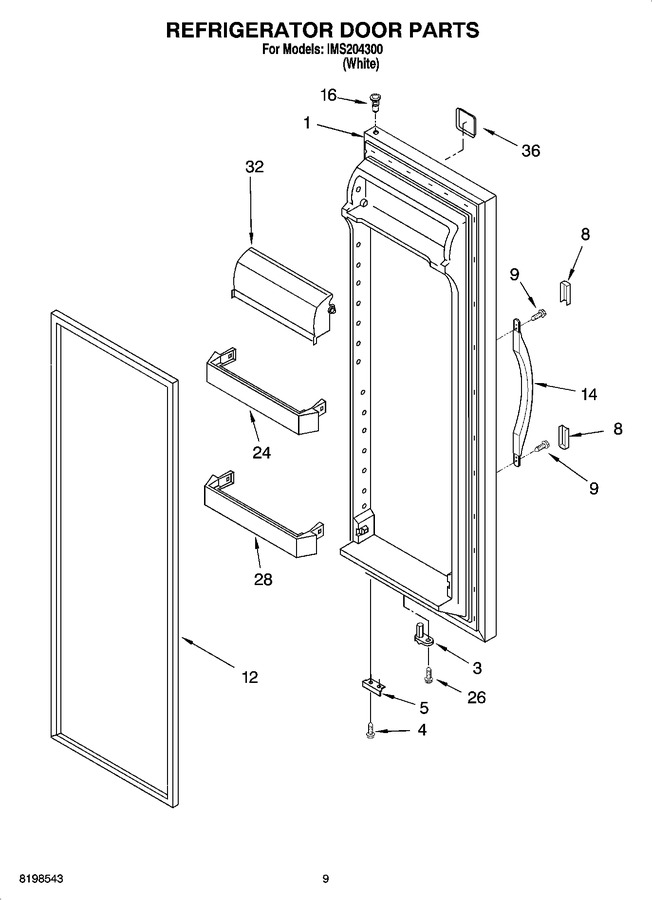

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2206826W | Refrigerator Door (white) |
|
- | |||||
| 3 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 4 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 5 | WP2206629B | Bracket, Door Stop (Replaces: 2206629) |
|
$ 42.79 | |||||
| 8 | WP2193353W | Endcap, Handle (2) (white) (Replaces: 2193353W) |
|
$ 8.52 | |||||
| 9 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 12 | 2159073 | Door, Gasket Magnetic (Replaces: 2221300) |
|
$ 333.19 | |||||
| 14 | 2186649W | Handle, Center (white) |
|
$ 70.49 | |||||
| 16 | WP2182181 | Thimble, Top (Replaces: 2182180) |
|
$ 8.15 | |||||
| 24 | WP2187172 | Door Bin (3) (Replaces: 2187172) |
|
Immediately | $ 45.09 | ||||
| 26 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 28 | WP2177962K | Trivet (Replaces: 2177962) |
|
$ 85.14 | |||||
| 32 | WP2256101 | Compartment Door (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 36 | 2225801 | Nameplate (white) |
|
- |
