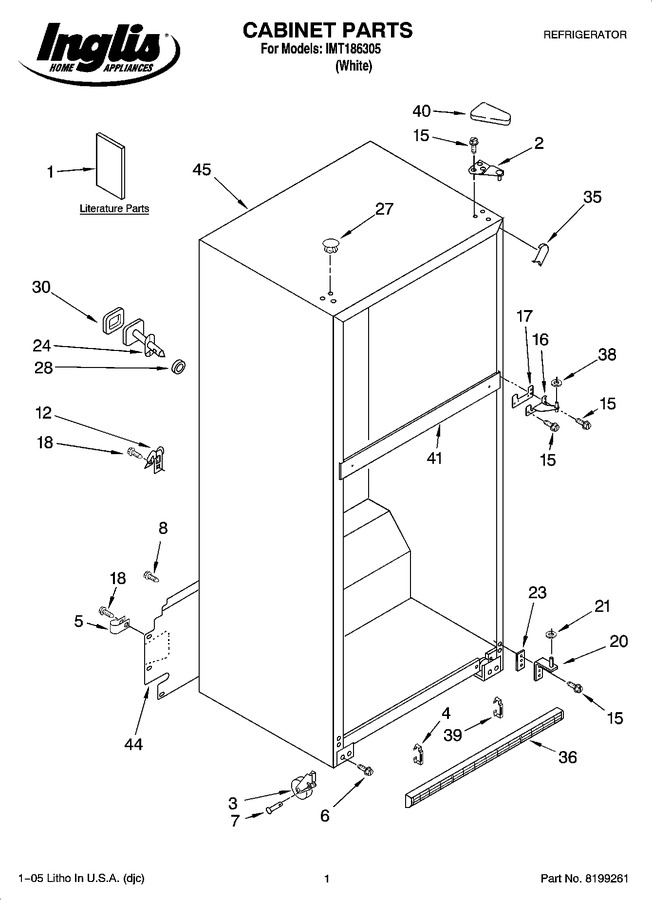

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2302220		Energy Label		Appelez-nous	-
1	2225759		Service & Wiring Sheet		Appelez-nous	-
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
1	2225407		Use & Care Guide		Appelez-nous	-
1	2225413		Customer Instructions		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	2189356		Clip-grille				$ 5.70
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.18
6	WP3400504		Screw   (Replaces: 3400504)				$ 7.19
7	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 18.21
8	WP489427		Screw   (Replaces: 489427)				$ 7.47
12	549193		Clamp-cord				$ 14.06
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 87.64
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 10.89
18	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 7.83
20	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 8.47
21	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
23	2172743		Shim, Bottom Hinge				$ 33.55
27	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 21.78
35	WPW10283959		Corner Filler (2) (white)   (Replaces: 2201014)				$ 7.82
36	WP2254386		Grille (includes Illus. 4 & 39) (white)   (Replaces: 2254386)				$ 94.53
38	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.88
39	2254385		Clip-grille				$ 88.87
40	WP2213360		Cover-hinge (white)   (Replaces: 2213360)				$ 19.23
44	2221775		Cover, Unit		Appelez-nous	-
