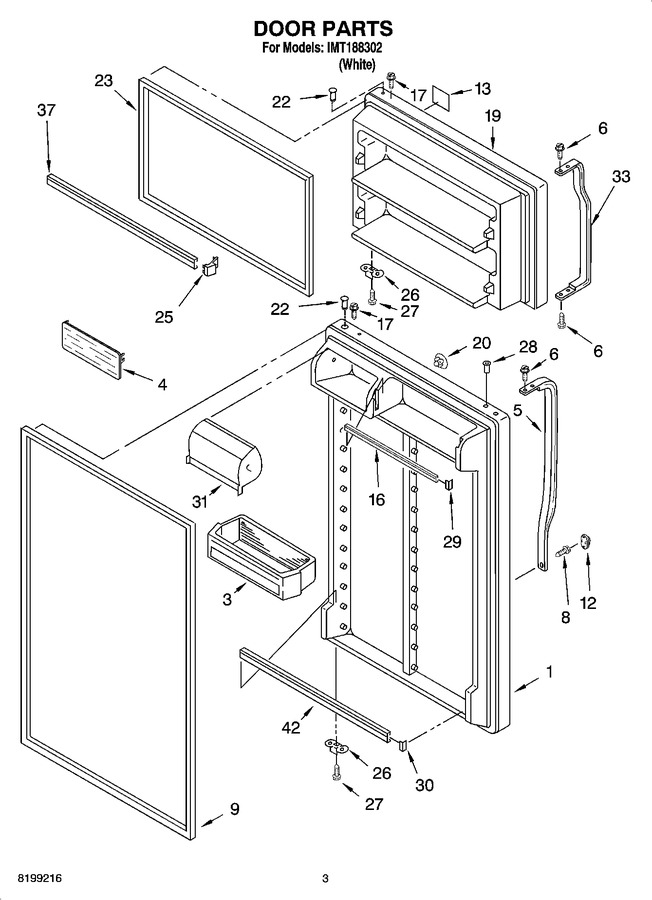

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183898		Refrigerator Door (includes 9 & 22) (white)		Appelez-nous	-
3	WP2204810		Bin, Door   (Replaces: 2204810)				$ 79.59
4	WP2188234		Door, Flip Up   (Replaces: 2188234)			Immediately	$ 57.44
5	WP2202807W		Handle Center (white)   (Replaces: 2202807W)				$ 155.22
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202874)			Immediately	$ 164.66
12	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 7.75
13	2225801		Nameplate (white)		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 118.40
17	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
19	2182487		Freezer Door (includes 22 & 23) (white)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.40
22	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
23	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
25	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 12.55
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
31	WP2218113		Compartment Door   (Replaces: 2218113)			Immediately	$ 50.33
33	WP2202806W		Handle, F.c. (white)   (Replaces: 2202806W)				$ 148.00
37	2195946		Trim-door (2)				$ 46.58
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 129.76
