Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1110652 Freezer, Door Panel (also Order Item 11) (white) Appelez-nous -
1 1110655 Freezer, Door Panel (also Order Item 11) (almond) Appelez-nous -
2 988402 Tap Plate Appelez-nous -
3 1118417 Handle, Center Appelez-nous -
4 939886 Seal, Hinge Pin Appelez-nous -
5 1119359 End Cap (2) Appelez-nous -
6 WPW10141645 Screw   (Replaces: 489084) Special Order $ 7.67

7 935075 Shim, End Cap (2) Appelez-nous -
8 WP939101 Screw Anchor (2)   (Replaces: 939101) Special Order $ 7.50

9 489022 Screw (4) Appelez-nous -
10 1127310 Door Gasket, Magnetic Appelez-nous -
11 876029 Foam Insulation (required When Replacing Exterior Door Panel) Appelez-nous -
12 941242 Screw Anchor (2) Appelez-nous -
13 1124969 Panel, Interior Door Appelez-nous -
14 2148331 Trim, Shelf (3) Appelez-nous -
15 WP489069 Screw   (Replaces: 489101) In-Stock Immediately $ 7.86

16 2148321 Trim, Door Shelf Appelez-nous -
17 1116960 Harness, Door (includes Item 18) Appelez-nous -
18 936183 Connector, Plug Appelez-nous -
19 WP488234 Screw, 8-32 X 5/32   (Replaces: 488889) Special Order $ 6.74

20 1119060 Tube, Door Wiring Appelez-nous -
21 227991 Wire Connector Appelez-nous -
22 1115345 Insulation, Dispenser Appelez-nous -
23 987188 Chute, Ice Appelez-nous -
24 534927 Hole Plug (2) Appelez-nous -
25 2147080 Tube, Door Wiring Appelez-nous -
26 4318165 Door Closer, Upper Cam   (Replaces: 1115905) In-Stock Immediately $ 27.36

27 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.58

28 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 7.86

29 1115906 Bracket, Door Stop Appelez-nous -
30 988421 Shim Appelez-nous -
32 1119360 Retainer, Insert Appelez-nous -
33 1119361 Insert, Handle (white) Appelez-nous -
33 1119363 Insert, Handle (almond) Appelez-nous -
34 1119373 Insert, Handle (white) Appelez-nous -
34 1119375 Insert, Handle (almond) Appelez-nous -
35 1119372 Retainer, Insert Appelez-nous -
36 2156220 End Cap Appelez-nous -
37 489075 Screw, 10-32 X 5/8 (2) Appelez-nous -
38 1118306 Gasket Retainer, Top & Bottom Appelez-nous -
39 1118302 Gasket Retainer, Side (2) Appelez-nous -
40 2148330 Trim, Door Shelf Appelez-nous -
41 1115364 End Cap, Trim (4) Appelez-nous -
42 1115333 End Cap, Trim (4) Appelez-nous -
43 1114380 Divider, Shelf Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

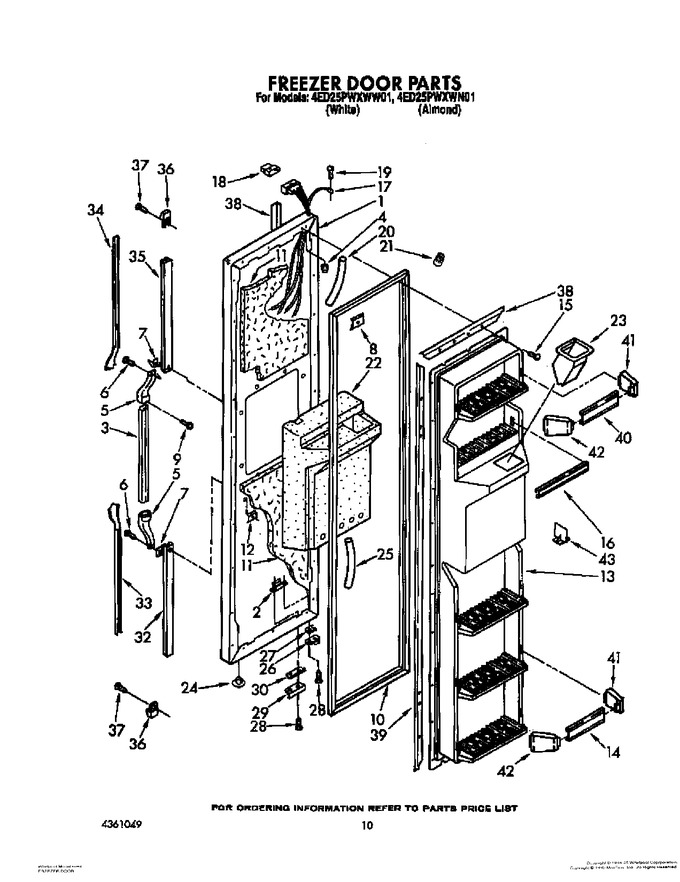

Diagram for 4ED25PWXWN01
