SELECT A DIAGRAM

Diagram for 01 - Frame And Console Parts
01 - Frame And Console Parts

Diagram for 02 - Inner Door Parts
02 - Inner Door Parts

Diagram for 03 - Tub Assembly Parts
03 - Tub Assembly Parts

Diagram for 04 - Pump And Motor Parts
04 - Pump And Motor Parts

Diagram for 05 - Upper Dishrack And Water Feed Parts
05 - Upper Dishrack And Water Feed Parts

Diagram for 06 - Lower Dishrack Parts
06 - Lower Dishrack Parts

Diagram for 07 - Miscellaneous Parts, Optional Parts
07 - Miscellaneous Parts, Optional Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10161215 Dishrack, Lower   (Replaces: 8519608) Special Order $ 198.12

2 WP8268645 Wheel & Transport Assembly   (Replaces: 8268820) In-Stock Immediately $ 62.31

4 8268869 Tinerow, Folding Special Order $ 35.71

5 8268862 Tower, Pressure Special Order $ 72.62

6 8268522 Retainer, Tine Row Special Order $ 5.51

7 W11027965 Silverware Basket Asembly   (Replaces: 8268884) Special Order $ 237.93

8 8519540 Door, Silverware Basket Appelez-nous -
9 8268886 Lid, Silverware Basket Appelez-nous -
10 WP8268874 Sprayarm, Lower   (Replaces: 8268874) Special Order $ 127.32

11 WP3376846 Seal, Lower Sprayarm   (Replaces: 3376846) In-Stock Immediately $ 10.12

12 3367910 Nut, Sprayarm Special Order $ 39.70

13 719576 Bearing, Radial Special Order $ 7.48

17 8519541 Latch Assembly Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

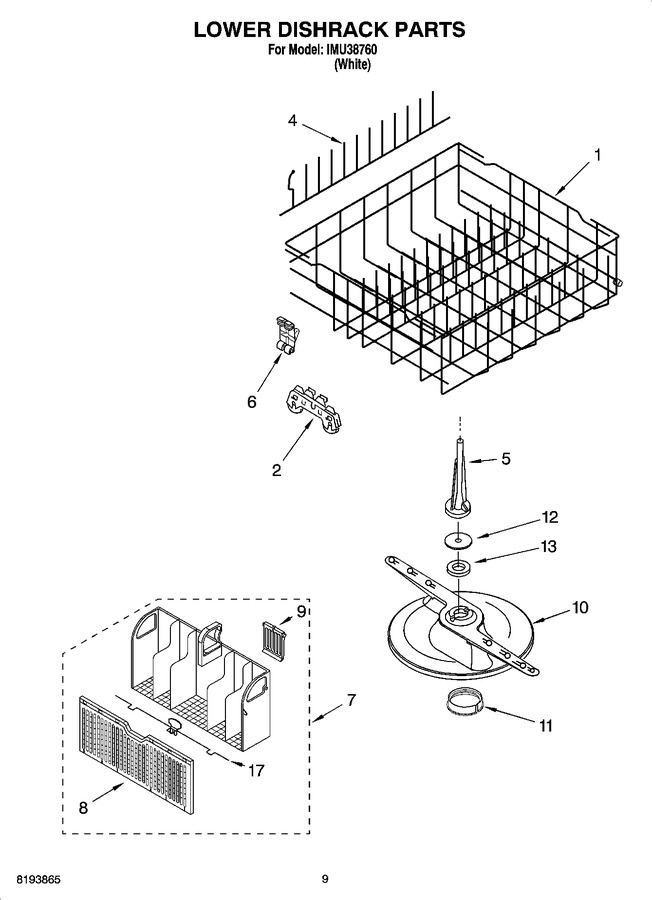

Diagram for IMU38760
