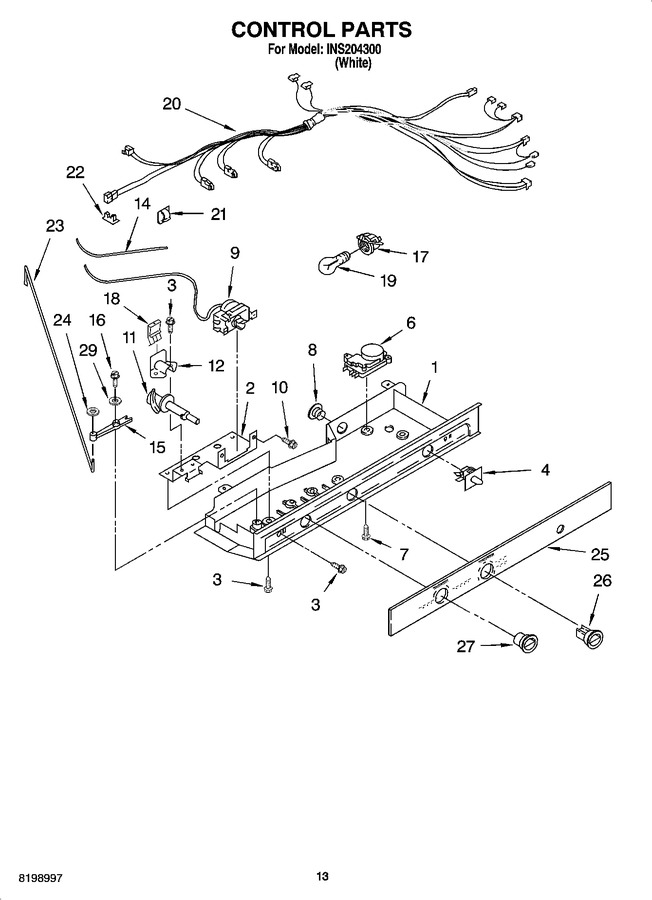

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200137		Control Box				$ 37.17
2	1110629		Mounting Bracket		Appelez-nous	-
3	WP3196557		Screw (4)   (Replaces: 3196537)			Immediately	$ 7.95
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
6	W10822278		Defrost Timer   (Replaces: 2188375)			Immediately	$ 34.44
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
8	940014		Hole Plug				$ 18.33
9	WP2198202		Thermostat Assembly   (Replaces: 2198201)			Immediately	$ 78.43
10	WP965173		Screw   (Replaces: 487869)			Immediately	$ 11.87
11	WP2182195		Cam Assembly   (Replaces: 2182195)				$ 5.13
12	1110560		Bearing Body				$ 11.30
14	WP2196003		Tube Barrier   (Replaces: 2196002)				$ 8.35
15	1110559		Pivot Arm				$ 8.35
16	627068		Screw				$ 12.73
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
18	WP2196062		Clip, Damper Control   (Replaces: 2196062)				$ 11.25
19	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
20	2206513		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
22	1115375		Clip, Wiring				$ 11.15
23	1123959		Connecting Rod		Appelez-nous	-
24	489285		Fastener, Push-on		Appelez-nous	-
25	2261328		Escutcheon, Control Box		Appelez-nous	-
26	2182111		Thermostat Knob				$ 25.40
27	2197871		Knob, Air Control				$ 6.56
29	489203		Spring Washer		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	350956		Customer Touch-up Material (enamel, Almond (12 Oz. Spray Can))				$ 54.01
	350942		Customer Touch-up Material Primer, White (12 Oz. Spray Can)				$ 94.14
	285006		Customer Touch-up Material (enamel, Black) (12 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	W11729596		Field Installable Ice Maker (eckmf94)   (Replaces: 2155469)			Immediately	$ 150.98
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30

    View Diagram in Separate Window       Print Part List
