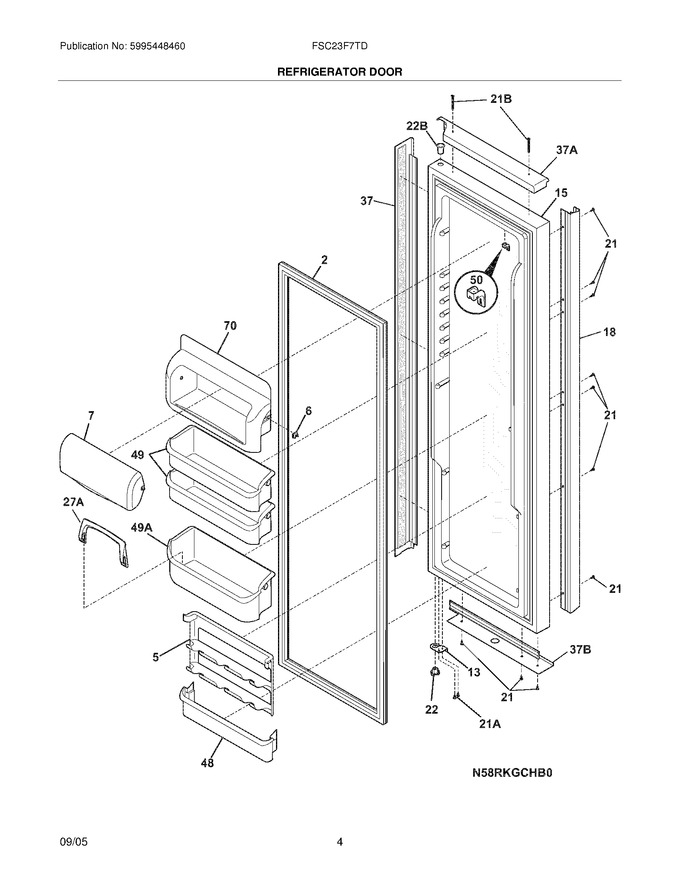

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 47.19
7	241515606		Door-dairy   (Replaces: 241515601)				$ 45.51
13	5303918455		Door Stop,black,ref   (Replaces: 240537105)				$ 157.82
15	241534515		Door-refr,black ,complete Assy				$ 295.16
18	241533608		Handle-refr Door,aluminum				$ 229.41
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 17.33
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 30.26
37	241533708		Trim-door,aluminum ,side		Appelez-nous	-
48	241511701		Bin-door,ref			Immediately	$ 74.68
49	241505301		Bin-door,2-liter			Immediately	$ 84.89
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 197.66
21A	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 15.75
21B	241543201		Screw,no.10-16 X 2		Appelez-nous	-
22B	240328404		Bearing-hinge,black ,upper				$ 25.41
27A	240396102		Retainer,tall Bottle				$ 21.26
37A	241534208		Trim-door,aluminum ,top		Appelez-nous	-
37B	241533808		Trim-door,aluminum ,bottom		Appelez-nous	-
49A	241505501		Bin-door,gallon			Immediately	$ 110.03
F2	241510207		Gasket-refr Door,black ,magnetic   (Replaces: 241510203)			Immediately	$ 107.93
