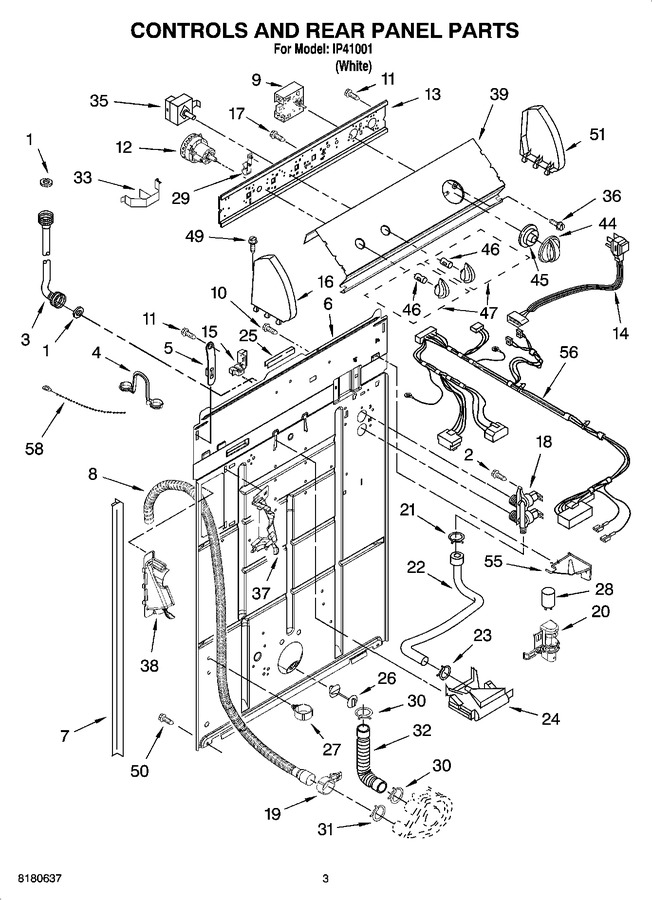

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 7.70 | |||||
| 2 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 3 | WP89503 | Hose, Water Inlet (2) (blue Coupler) (Replaces: 8571377) |
|
Immediately | $ 24.09 | ||||
| 3 | WP89503 | Hose, Water Inlet (2) (red Coupler) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 4 | WP8577378 | U-bend, Drain Hose (Replaces: 8541672) |
|
$ 7.97 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8318255) |
|
$ 7.78 | |||||
| 6 | 8318015 | Panel, Rear |
|
$ 148.59 | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 26.26 | |||||
| 8 | WPW10096921 | Drain Hose Assembly (includes Items 19 & 27 (Replaces: 8559373) |
|
Immediately | $ 67.38 | ||||
| 9 | WP8541939 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: 8541939) |
|
$ 418.28 | |||||
| 10 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 12 | W10339228 | Switch, Water Level (Replaces: 3366849) |
|
Immediately | $ 221.16 | ||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 116.19 | |||||
| 14 | 661661 | Cord, Power (includes Item 15) |
|
$ 25.46 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 17 | 3400073 | Screw, Ground |
|
- | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3952164) |
|
Immediately | $ 55.08 | ||||
| 19 | 8541668 | Clamp, Hose |
|
$ 21.26 | |||||
| 20 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.40 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 8541607) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.40 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 25 | 303294 | Edge Protector |
|
- | |||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 18.90 | ||||
| 27 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 28 | WP8572717 | Capacitor, Motor Start (Replaces: 661606) |
|
Immediately | $ 80.14 | ||||
| 29 | 8317975 | Retainer, Harness |
|
$ 5.86 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.81 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes 30) (Replaces: 3951449) |
|
Immediately | $ 26.68 | ||||
| 33 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 35 | WPW10168256 | Switch, Water Temperature (Replaces: 661612) |
|
Immediately | $ 128.81 | ||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 7.96 | |||||
| 37 | WPW10096921 | Bucket, Drain Hose (left Half) (Replaces: 8541669) |
|
Immediately | $ 67.38 | ||||
| 38 | WPW10096921 | Bucket, Drain Hose (right Half) (Replaces: 8541658) |
|
Immediately | $ 67.38 | ||||
| 39 | 3954239 | Panel, Console |
|
$ 34.16 | |||||
| 44 | 8543272 | Knob, Timer |
|
Immediately | $ 6.44 | ||||
| 45 | WP8544947 | Dial, Timer (Replaces: 8544947) |
|
$ 86.13 | |||||
| 46 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 47 | WP8543270 | Knob, Control (Replaces: 8543270) |
|
Immediately | $ 8.84 | ||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 8.11 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 | |||||
| 51 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 55 | 8539874 | Shield, Suds |
|
$ 7.01 | |||||
| 56 | 3956951 | Wiring Harness (for Detail See Pages 9 & 10) |
|
$ 112.46 | |||||
| 58 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.90 |
