Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1118413 Shelf Assembly, Cantilever (2) Appelez-nous -
2 1114302 Trim, Shelf Appelez-nous -
3 WP1126289 Cover, Crisper   (Replaces: 2148309) Special Order $ 181.71

4 489226 Screw (3) Appelez-nous -
5 2148122 Pan Shelf & Slide Assembly Appelez-nous -
6 1110795 Trim, Crisper Cover Appelez-nous -
7 1114687 Glass, Crisper Cover Special Order $ 88.24

8 WP2148298 Cover, Meat Pan   (Replaces: 2148298) Special Order $ 174.59

9 2158951 Pan, Crisper Appelez-nous -
10 2158949 Pan, Meat Appelez-nous -
11 2148237 Glass, Shelf Appelez-nous -
12 1114306 Reflector, Shelf Appelez-nous -
13 2158950 Front, Crisper Pan Appelez-nous -
14 1116718 Slide Appelez-nous -
15 WP982704 Container   (Replaces: 2148079) Special Order $ 31.00

16 2148300 Glass, Shelf Appelez-nous -
17 2148301 Trim, Shelf Appelez-nous -
18 2158957 Snack Bin Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

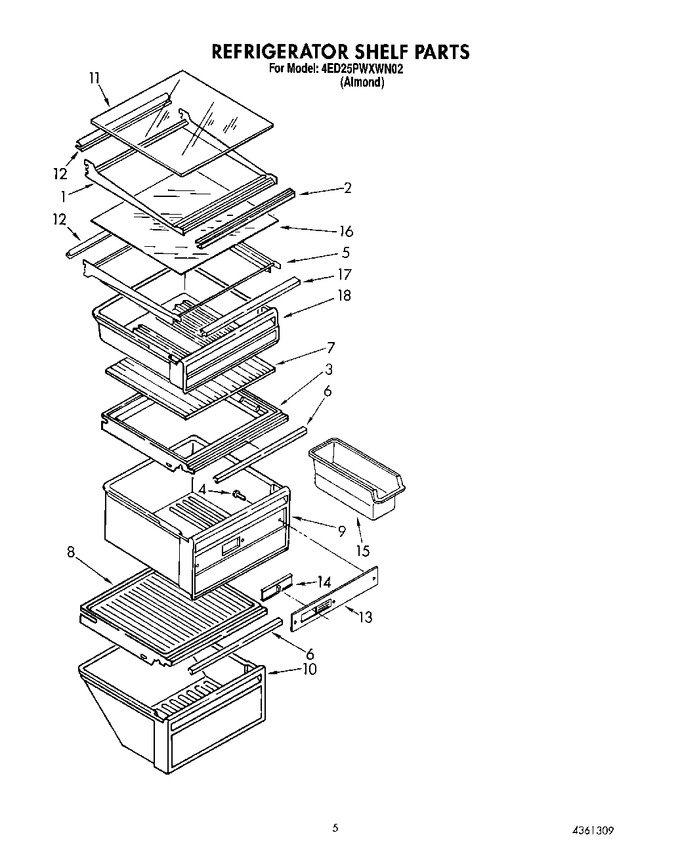

Diagram for 4ED25PWXWN02
