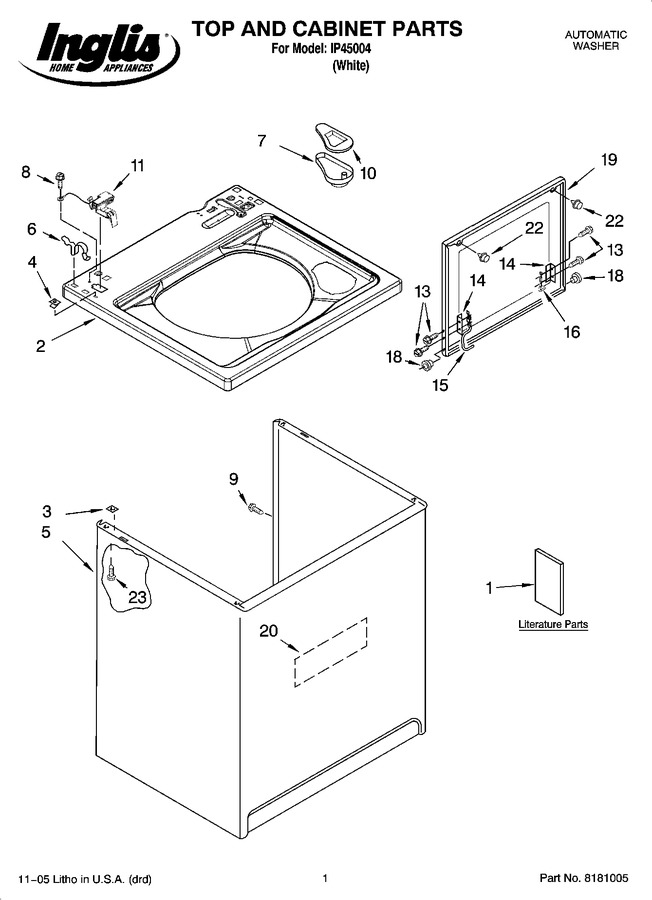

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Machine Base Parts


05 - Brake, Clutch, Gearcase, Motor And Pump Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3958075		Installation Instructions		Appelez-nous	-
1	8563611		Wiring Diagram		Appelez-nous	-
1	8578236		Use & Care Guide		Appelez-nous	-
1	3955923		Feature Sheet		Appelez-nous	-
2	8543451		Top		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 7.69
4	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
5	63424		Cabinet				$ 370.02
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
7	8519517		Dispenser, Bleach				$ 93.87
8	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
9	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
10	3955788		Cover, Dispenser				$ 20.18
11	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 355274)			Immediately	$ 7.19
14	WP21097		Pad, Lid Hinge (2)   (Replaces: 21097)				$ 7.80
15	8559336		Hinge, Lid (l.h.)		Appelez-nous	-
16	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 27.45
18	8319539		Bearing, Lid Hinge (2)				$ 5.51
19	8558398		Lid		Appelez-nous	-
20	3976348		Cabinet- Sound Dampener				$ 37.92
22	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.93
23	WP3390631		Screw, 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 7.82
