SELECT A DIAGRAM

01 - Cabinet Parts

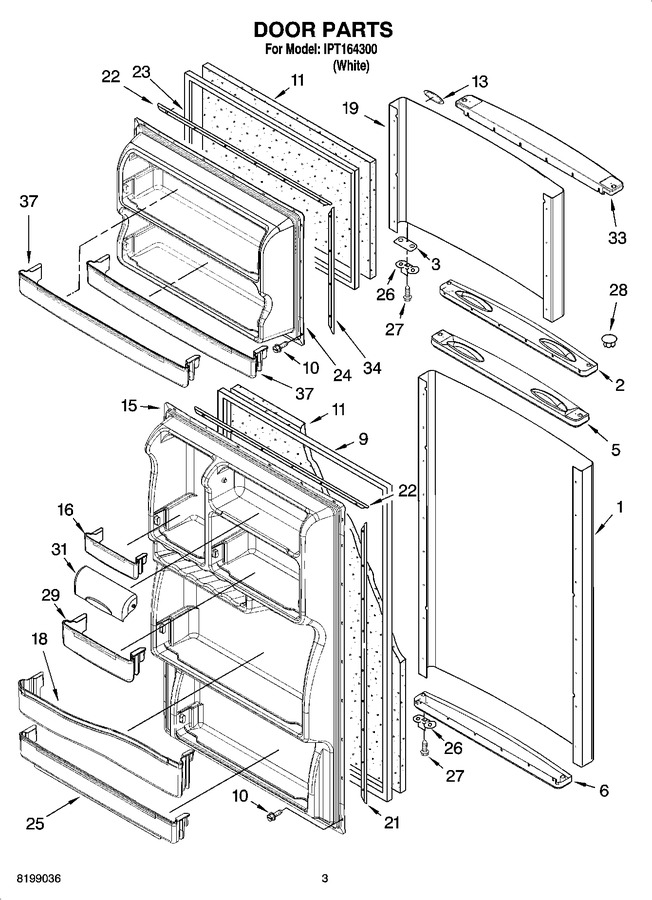

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2263374W		Refrigerator Door Panel (includes Items 5 & 6) (also Order Item 11) (white)		Appelez-nous	-
2	2265645W		Handle (fc Door) (white)   (Replaces: 2258858W)				$ 219.98
3	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 7.55
5	2265645W		Handle (rc Door) (white)   (Replaces: 2222011)				$ 219.98
6	2222012		Endcap, Bottom (white)		Appelez-nous	-
9	WP2319266T		Door Gasket, Magnetic (mist Beige)   (Replaces: 2262081)				$ 171.60
10	2256637		Screw				$ 13.53
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
13	2263431		Nameplate				$ 78.08
15	2202216		Interior Door Panel (refrigerator)		Appelez-nous	-
16	2214110		Trim, Door Shelf		Appelez-nous	-
18	2214104		Trim, Door (middle)				$ 33.35
19	2222016W		Freezer Door Panel (includes Items 2 & 33) (also Order Item 11) (white)		Appelez-nous	-
21	2210072		Retainer, Gasket				$ 49.15
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic (mist Beige)   (Replaces: 2262079)				$ 114.77
24	2202276		Interior Door Panel (freezer)		Appelez-nous	-
25	2214113		Trim, Door Shelf (bottom)		Appelez-nous	-
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	W10276642		Screw   (Replaces: 8533904)				$ 6.41
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
29	2214101		Trim, Door		Appelez-nous	-
31	2214116		Compartment Door		Appelez-nous	-
33	2252860		Endcap, Top (white)		Appelez-nous	-
34	1122553		Retainer, Gasket		Appelez-nous	-
37	2214107		Trim, Door Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
