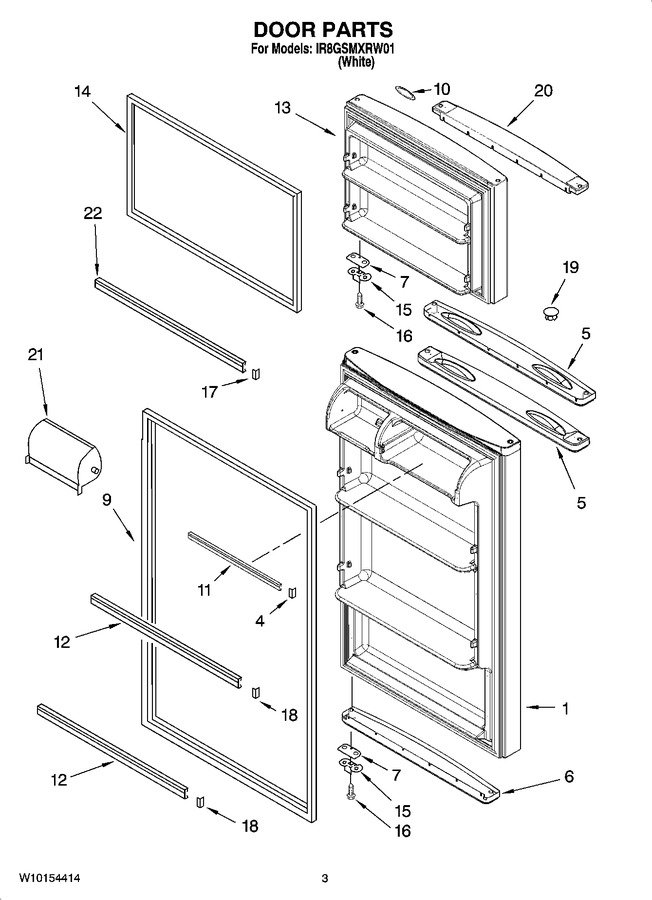

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2263252W | Refrigerator Door Assembly (includes Illus. 9) |
|
- | |||||
| 4 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 5 | 2265645W | End Cap-handle |
|
$ 219.98 | |||||
| 6 | 2265647W | Endcap, Bottom |
|
$ 63.82 | |||||
| 7 | WP2258681W | Shim, Door Stop (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 9 | WP2319264T | Door Gasket (Replaces: 2263258) |
|
Immediately | $ 192.71 | ||||
| 10 | 2325672W | Nameplate |
|
- | |||||
| 11 | W11129820 | Trim, Door Shelf (Replaces: 2266729) |
|
Immediately | $ 127.34 | ||||
| 12 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 111.69 | |||||
| 13 | 2263251W | Freezer Door Assembly (includes Illus. 14) |
|
- | |||||
| 14 | WP2319263T | Door Gasket (Replaces: 2263257) |
|
Immediately | $ 169.53 | ||||
| 15 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 16 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 18 | WP2195916K | Endcap, Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 19 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 20 | 2265644W | Endcap, Top |
|
$ 148.05 | |||||
| 21 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 58.76 | ||||
| 22 | WP2266727 | Trim-door (2) (Replaces: 2266727) |
|
Immediately | $ 92.50 |
