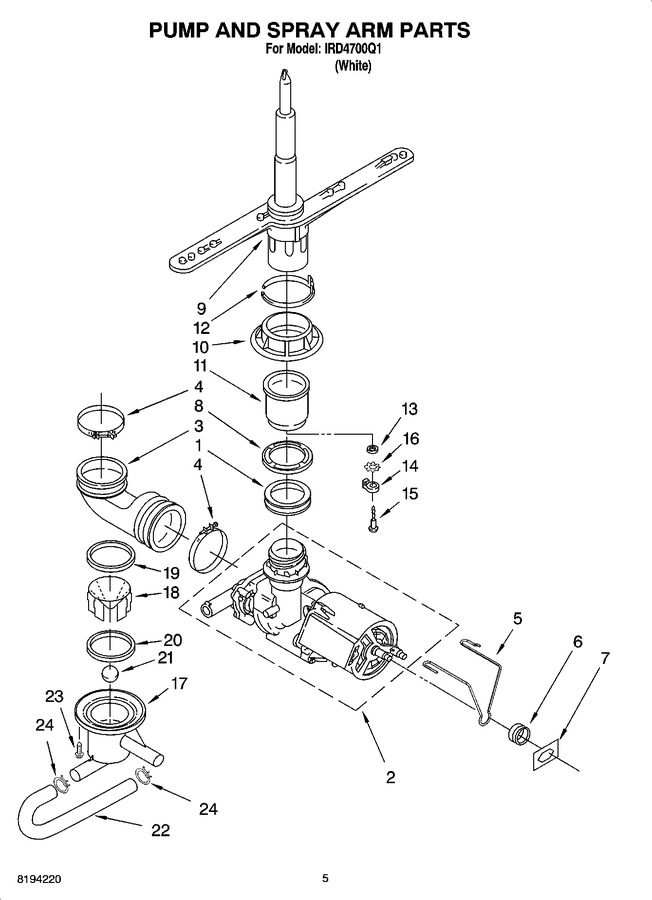

04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3369037		Grommet, Pump Seal				$ 28.33
2	3369015		Pump & Motor Assembly For Breakdown Of Pump Parts, Refer To Pump And Motor Parts Page		Appelez-nous	-
3	W11189178		Hose, Pump Inlet   (Replaces: 3369035)				$ 28.70
4	3400959		Clamp (2)				$ 26.08
5	8531963		Support, Motor		Appelez-nous	-
6	3369032		Grommet, Motor Support		Appelez-nous	-
7	3370856		Push-nut, Motor Support				$ 5.58
8	3369038		Washer, Grommet				$ 12.83
9	8268870		Spray Arm, Assembly Lower		Appelez-nous	-
10	8268883		Nut, Pump Outlet		Appelez-nous	-
11	3371745		Support & Bearing Assembly (includes Items: 13, 14, 15 & 16)				$ 38.01
12	WP3369045		Seal, Split Ring   (Replaces: 3369045)				$ 11.48
13	3369044		Washer		Appelez-nous	-
14	3371746		Bearing				$ 14.19
15	3371744		Shoulder Screw		Appelez-nous	-
16	3371634		Washer, Curved				$ 5.33
17	8520839		Collector Assembly W/check Valve				$ 63.16
18	WP8520841		Funnel   (Replaces: 8520841)				$ 7.30
19	WP8520843		Seal   (Replaces: 8520843)				$ 11.68
20	WP3369177		Seal   (Replaces: 3369177)				$ 12.46
21	WP3369178		Ball, Check-valve   (Replaces: 3369178)				$ 11.56
22	8520842		Hose, Collector				$ 102.61
23	3369181		Screw		Appelez-nous	-
24	371499		Clamp				$ 12.95
