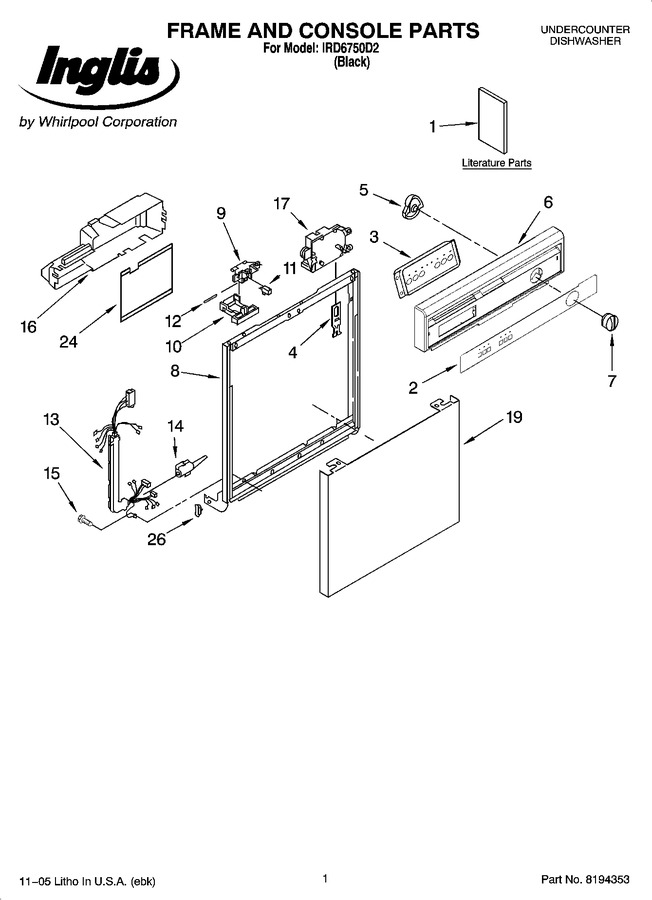

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Motor Parts


05 - Upper Dishrack And Water Feed Parts


06 - Lower Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8535436		Instructions, Installation		Appelez-nous	-
1	3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
1	8576002		Guide, Use & Care		Appelez-nous	-
1	8275138		Label, Wiring Diagram		Appelez-nous	-
1	3385963		Guide, Energy		Appelez-nous	-
2	8575608		Insert		Appelez-nous	-
3	8269369		Control, Electronic		Appelez-nous	-
4	WP3369529		Cam, Follower   (Replaces: 3369529)				$ 65.43
5	3378124		Cam				$ 5.75
6	3386008		Console (includes Insert) (black)		Appelez-nous	-
7	8275308		Knob, Timer				$ 75.05
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369458		Lever, Latch (black)				$ 38.62
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8573185		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	8269526		Cover, Timer (includes Item 24)		Appelez-nous	-
17	WP8535371		Timer   (Replaces: 8535371)				$ 399.45
19	8537074		Panel, Front (black)		Appelez-nous	-
24	3379671		Shield, Control Cover		Appelez-nous	-
26	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
