SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Freezer Interior


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Transformer


11 - Unit


12 - Air Flow


13 - Control


14 - Icemaker, Lit/optional

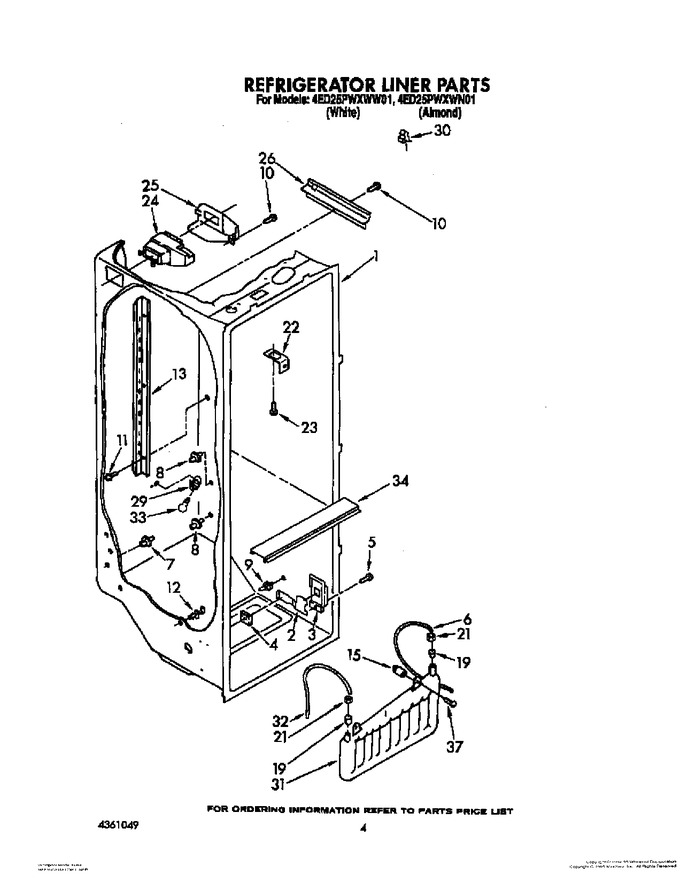

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	985468		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
5	486214		Screw 8-15 X 1/2		Appelez-nous	-
6	W10823511		Tube, Water   (Replaces: 1119096)			Immediately	$ 32.41
7	WP2149540		Stud (2)   (Replaces: 2149540)				$ 10.44
8	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 31.34
9	1115290		Stud (2)				$ 7.61
10	WP489478		Screw   (Replaces: 489242)				$ 7.75
11	WP488729		Screw, 8 X 1/2 (6)   (Replaces: 487539)			Immediately	$ 7.79
12	4388538		Stud (2)   (Replaces: 2147997)			Immediately	$ 31.34
13	1116794		Ladder, Shelf (2)		Appelez-nous	-
15	1115399		Stud, Spacer (2)		Appelez-nous	-
19	1129177		Insert, Plastic Tube				$ 5.27
21	1129179		Nut, Compression		Appelez-nous	-
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 34.38
23	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2157403)			Immediately	$ 99.78
25	2152019		Cover, Air Diffuser				$ 86.03
26	2150331		Cover, Conduit				$ 24.40
29	4387478		Socket   (Replaces: 1129370)			Immediately	$ 110.16
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.42
31	WP2256126		Reservoir   (Replaces: 1129170)				$ 168.85
32	1129176		Tube		Appelez-nous	-
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	1118259		Light Lens		Appelez-nous	-
37	488280		Screw (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
