01 - Cooktop Parts

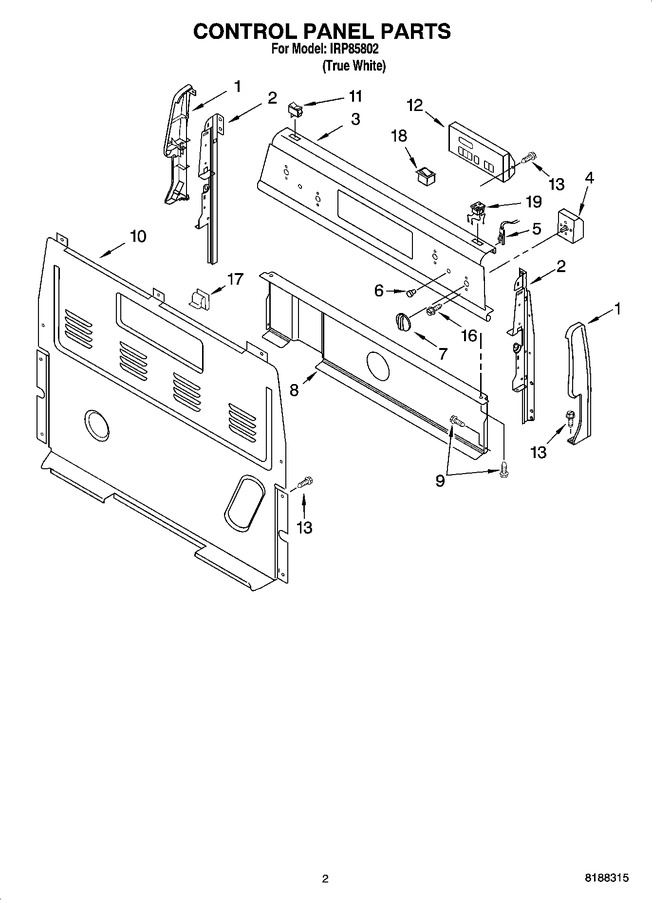

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186190 | Endcap (white, Left) |
|
- | |||||
| 1 | 3186191 | Endcap (white, Right) |
|
- | |||||
| 2 | 8523408 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 8523409 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 9761371 | Panel, Backguard |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (right Front) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WP9761048 | Switch, Infinite (left Front) (Replaces: 9761048) |
|
Immediately | $ 152.52 | ||||
| 4 | WP3148952 | Switch, Infinite (right Rear) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 5 | WP8523265 | Light, Ind. (2) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WP8522565 | Knob, Infinite (4) (white) (Replaces: 8522565) |
|
Immediately | $ 20.90 | ||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.41 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | 3149360 | Switch, Rocker (white) |
|
$ 89.01 | |||||
| 12 | 6610469 | Control, Range |
|
$ 358.79 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 | |||||
| 18 | WP9757601 | Breaker (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 19 | W10849725 | Outlet, Untimed (Replaces: 9758885) |
|
Immediately | $ 80.79 |
