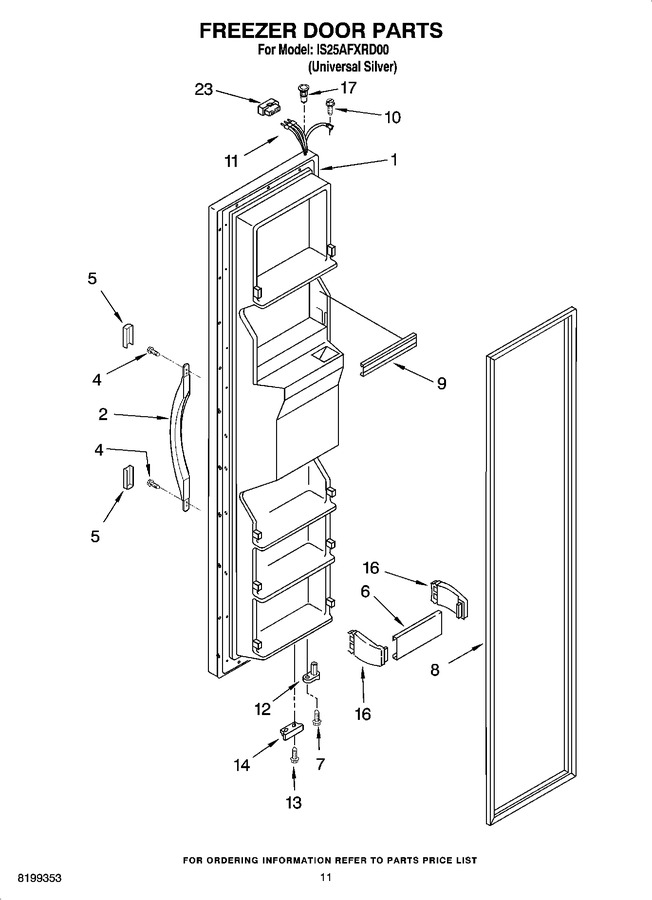

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2315031US		Freezer Door (includes Item 8 And Dispenser Front Parts) (universal Silver)		Appelez-nous	-
2	2186649B		Handle, Center (black)				$ 72.96
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	2193353B		Extension, Handle (black)				$ 5.85
6	2313199		Trim, Door (4)   (Replaces: 2313199K)				$ 86.60
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159082		Door Gasket, Magnetic   (Replaces: 2221314)				$ 316.66
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 23.11
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2311641		Wire Harness   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop   (Replaces: 2206629B)				$ 40.03
16	2195917K		End Cap (8)				$ 10.30
17	2301049		Thimble, Top				$ 75.42
23	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
