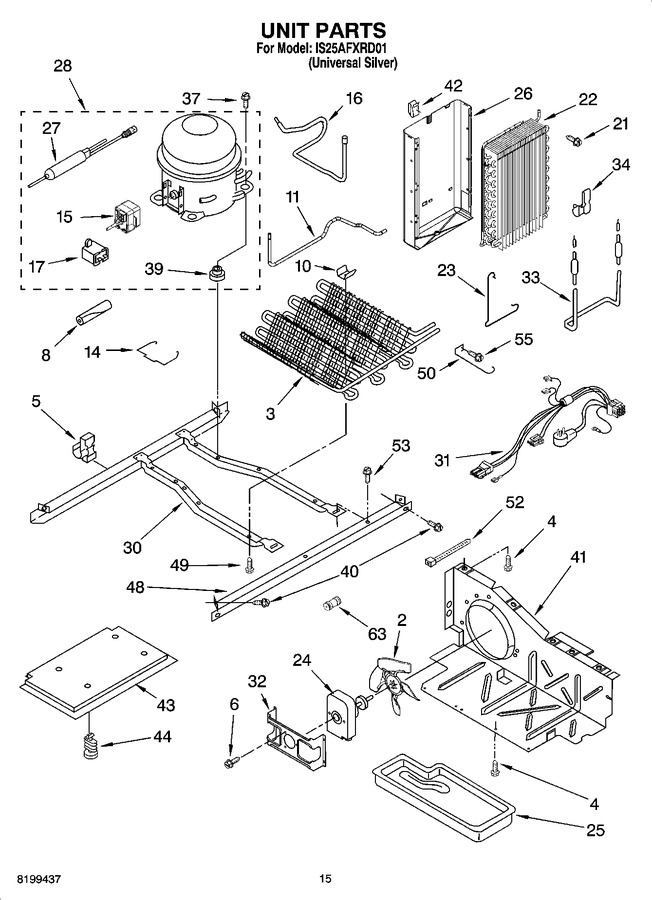

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: 2223953) |
|
$ 323.45 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 10 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 19.38 | |||||
| 11 | 2261599 | Tube, Condenser To Heat Loop |
|
$ 243.67 | |||||
| 14 | 2255009 | Bale, Strap |
|
- | |||||
| 15 | WP2313162 | Start-device, Combination (start Relay And Overload) (Replaces: 2313162) |
|
$ 193.77 | |||||
| 16 | 2313230 | Tube Suction |
|
- | |||||
| 17 | WP65889-4 | Capacitor (Replaces: 2255130) |
|
Immediately | $ 61.14 | ||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 22 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 381.49 | ||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | W10124096 | Fan, Motor (Replaces: 2188727) |
|
Immediately | $ 112.20 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 26 | 2304289 | Heat Shield |
|
- | |||||
| 27 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 57.13 | ||||
| 27 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 57.13 | ||||
| 28 | W10309994 | Compressor (includes Items 15, 17, 27 & 39) (also Order 876765 Tube Kit) (Replaces: 2308262) |
|
Immediately | $ 643.55 | ||||
| 30 | 2304904 | Unit Mounting Frame (Replaces: 2157397) |
|
- | |||||
| 31 | 2187510 | Unit, Harness |
|
- | |||||
| 32 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 12.93 | |||||
| 33 | WP2323198 | Heater, Defrost (Replaces: 2188175) |
|
Immediately | $ 90.70 | ||||
| 34 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 37 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 39 | W11661108 | Grommet (4) (Replaces: 2183042) |
|
$ 15.21 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 101.20 | |||||
| 42 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 43 | 2206281 | Unit Cover, Bottom |
|
- | |||||
| 44 | 489396 | Clip |
|
$ 11.26 | |||||
| 48 | 2305374 | Unit Mounting Rail |
|
$ 84.67 | |||||
| 49 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 50 | 2186495 | Guard, Fan |
|
- | |||||
| 52 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 8.30 | |||||
| 53 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 55 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 63 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 63 | WP4373559 | Union (Replaces: 2209709) |
|
$ 81.22 | |||||
| 63 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 63 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 63 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 63 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 63 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 63 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 |
