Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2304542 Shelf, Cantilever (3) Appelez-nous -
2 W10508993 Cover, Crisper   (Replaces: 2209698) Special Order $ 305.85

3 W10864399 Glass, Cover   (Replaces: 2179259) Special Order $ 232.03

4 2179350 Deflector Special Order $ 85.89

5 2217039 Cover, Meat Pan Appelez-nous -
6 WP2188661 Crisper Pan   (Replaces: 2188653) In-Stock Immediately $ 162.07

7 WP2188664 Meat Pan   (Replaces: 2188654) In-Stock Immediately $ 92.70

8 W10136387A Egg Bin Assembly   (Replaces: 2216624) Special Order $ 19.54

9 1125594 Retainer Appelez-nous -
10 2177986 Glass (3) Special Order $ 90.50

13 W10864399 Glass, Cover   (Replaces: 2174150) Special Order $ 232.03


    View Diagram in Separate Window     Print Icon   Print Part List

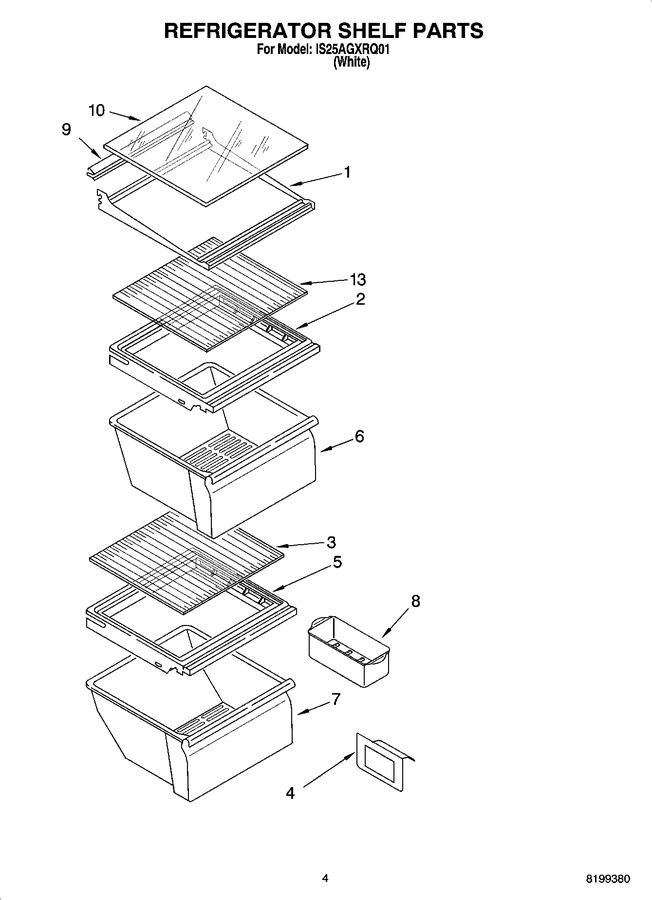

Diagram for IS25AGXRQ01
