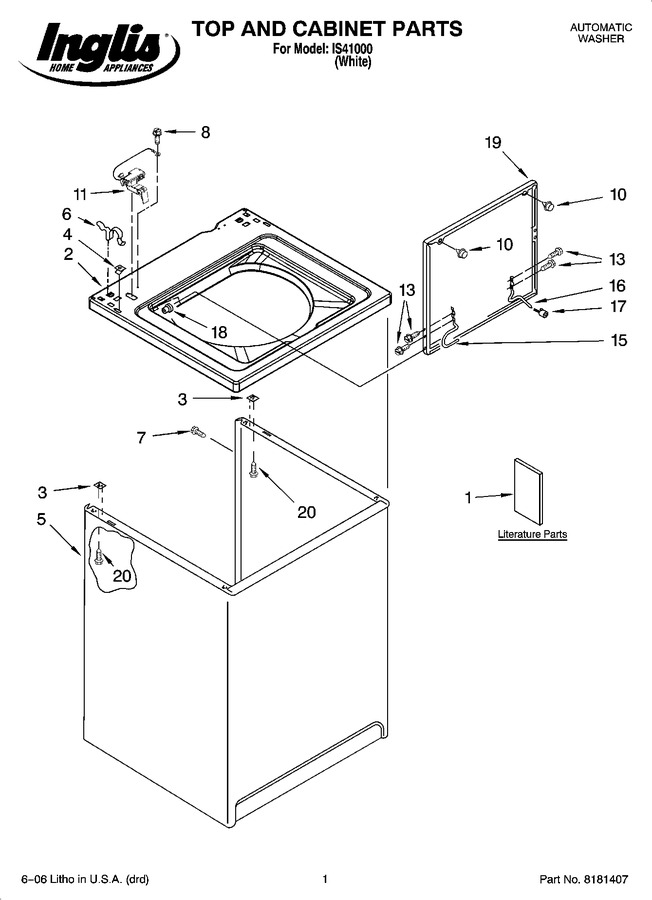

01 - Top And Cabinet Parts


02 - Control And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10044800		Installation Instructions		Appelez-nous	-
1	8578912		Wiring Diagram		Appelez-nous	-
1	8578236		Use & Care Guide		Appelez-nous	-
1	W10096020		Feature Sheet		Appelez-nous	-
2	8318068		Top				$ 200.07
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 8.07
4	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
5	63424		Cabinet				$ 388.52
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 8.19
7	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
8	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
10	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 8.33
11	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 7.55
15	8318088		Hinge, Lid (l.h.)		Appelez-nous	-
16	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 31.04
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 8.01
19	WPW10193857		Lid   (Replaces: 8580061)				$ 374.55
20	WP3390631		Screw, 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 8.25
