SELECT A DIAGRAM

01 - Top And Cabinet Parts

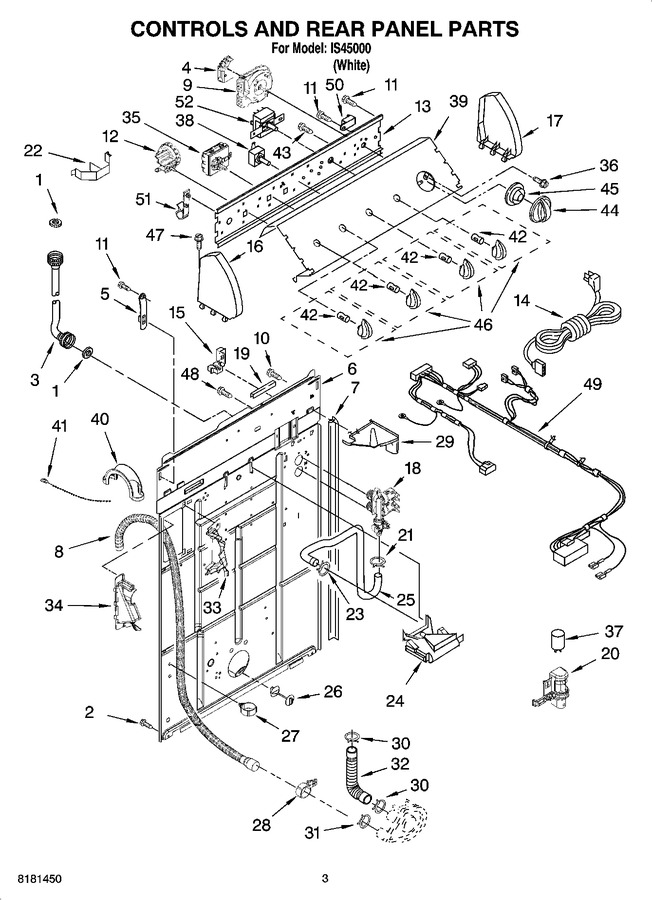

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 8.16
2	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
3	WP89503		Hose, Water Inlet (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (blue Coupler)   (Replaces: 8571377)			Immediately	$ 24.09
4	8578411		Circuit Board, Agitation Delay				$ 52.84
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 8.17
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
8	WPW10096921		Drain Hose Assembly (includes Items 28 & 47)   (Replaces: 8559373)			Immediately	$ 67.38
9	WP8577787		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 8577787)			Immediately	$ 339.00
10	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
12	W10339250		Switch, Water Level   (Replaces: 8577842)				$ 222.39
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 122.00
14	3956162		Cord, Power (includes Item 15)		Appelez-nous	-
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	8271365		Cap, End (l.h.)		Appelez-nous	-
17	8271359		Cap, End (r.h.)		Appelez-nous	-
18	WP3979346		Valve, Water Inlet W/bi-metal   (Replaces: 3979347)			Immediately	$ 76.88
19	303294		Edge Protector		Appelez-nous	-
20	8318046		Clip, Capacitor				$ 79.31
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.82
22	8055003		Clip, Harness & Pressure Hose				$ 36.24
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.82
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	WP8317926		Hose, Vacuum Break   (Replaces: 8317974)			Immediately	$ 24.87
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 19.85
27	8541667		Clamp, Hose				$ 5.86
28	8541668		Clamp, Hose				$ 22.32
29	8539874		Shield, Suds				$ 7.01
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 8.58
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.81
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 28.99
33	WPW10096921		Bucket, Drain Hose (left Half)   (Replaces: 8541669)			Immediately	$ 67.38
34	WPW10096921		Bucket, Drain Hose (right Half)   (Replaces: 8541658)			Immediately	$ 67.38
35	WP8577786		Switch, Water Temperature (atc)   (Replaces: 8577786)			Immediately	$ 171.75
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 8.81
37	WP8572717		Capacitor, Motor Start   (Replaces: 8572717)			Immediately	$ 80.14
38	W10168264		Switch, Rotary   (Replaces: 3950356)				$ 132.66
39	8579086		Panel, Console		Appelez-nous	-
40	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 8.37
41	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 8.30
42	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 8.20
43	3400073		Screw, Ground		Appelez-nous	-
44	8543272		Knob, Timer			Immediately	$ 6.44
45	WP8544947		Dial, Timer   (Replaces: 8544947)				$ 90.44
46	WP8543270		Knob, Control   (Replaces: 8543270)			Immediately	$ 8.84
47	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 9.29
48	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 8.58
49	W10103090		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
50	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
51	8317975		Retainer, Harness				$ 5.86
52	8578537		Switch, Rotary				$ 62.06

    View Diagram in Separate Window       Print Part List
