SELECT A DIAGRAM

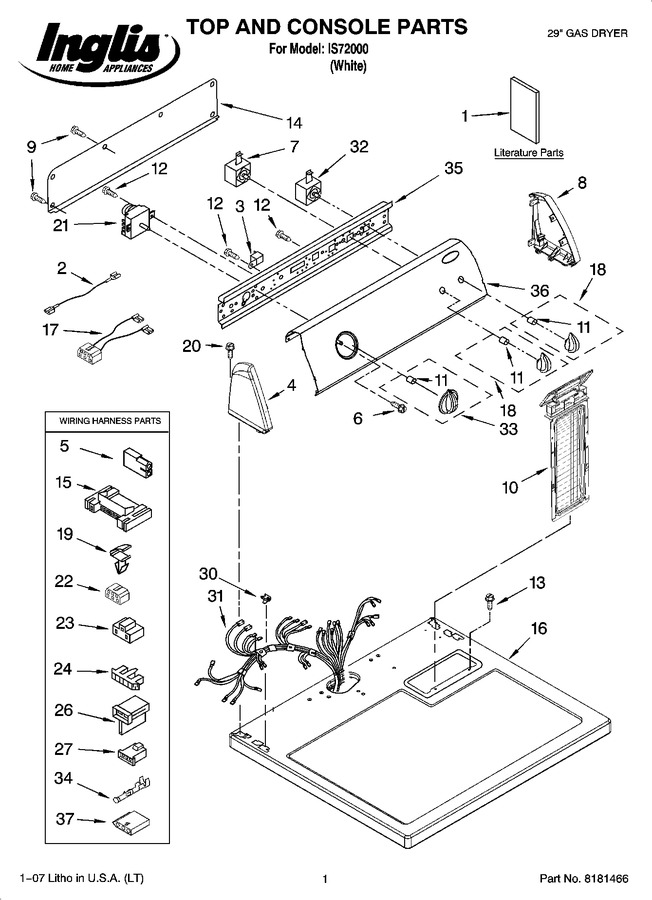

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8562584		Instructions, Installation		Appelez-nous	-
1	W10110133		Sheet, Cycle Feature		Appelez-nous	-
1	8578197		Use & Care Guide		Appelez-nous	-
1	8528191		Wiring Diagram		Appelez-nous	-
2	3401684		Wire, Jumper (pts To Buzzer)				$ 34.57
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
7	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8557930		Top		Appelez-nous	-
17	8539893		Jumper, (temperature)				$ 19.78
18	WP8543270		Knob, Control   (Replaces: 8543270)			Immediately	$ 8.84
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
20	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
21	WP8299765		Timer Assembly (60 Hz.)   (Replaces: 8299765)				$ 336.63
22	3347243		Connector 6-circuit		Appelez-nous	-
23	3401144		Connector, (pts Relay)				$ 12.81
24	3397269		Connector, Timer				$ 25.55
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8299879		Harness, Wiring		Appelez-nous	-
32	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
33	8543273		Timer Knob Assembly				$ 6.44
34	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
35	8271418		Bracket, Control				$ 57.15
36	8578960		Panel, Control		Appelez-nous	-
37	3936144		Connector				$ 21.22

    View Diagram in Separate Window       Print Part List
