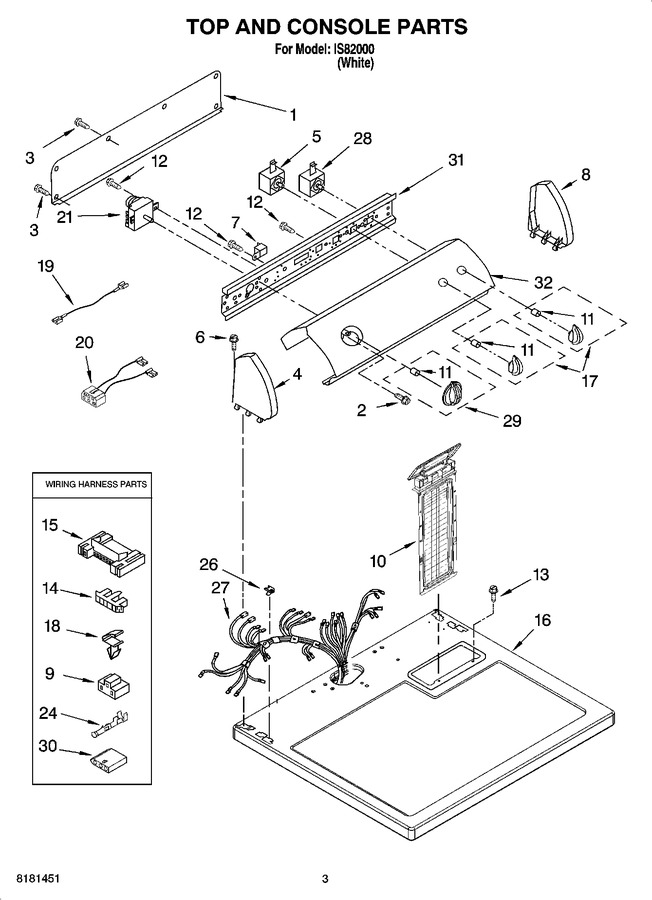

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	3400859		Screw, Groundng   (Replaces: 8533951)				$ 13.88
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	3401144		Connector, (pts Relay)				$ 12.81
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3397269		Connector, Timer				$ 25.55
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8557930		Top		Appelez-nous	-
17	WP8543270		Knob, Control   (Replaces: 8543270)			Immediately	$ 8.84
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	3401684		Wire, Jumper (black)				$ 34.57
20	8539893		Wire-jumper Assembly (temperature)				$ 19.78
21	WP3979617		Timer, 60 Hz.   (Replaces: 3979617)			Immediately	$ 385.79
24	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
26	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
27	8299874		Harness, Wiring				$ 56.74
28	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
29	8543273		Timer Knob Assembly				$ 6.44
30	3936144		Connector				$ 21.22
31	8271418		Bracket, Control				$ 57.15
32	8578960		Panel, Control		Appelez-nous	-
