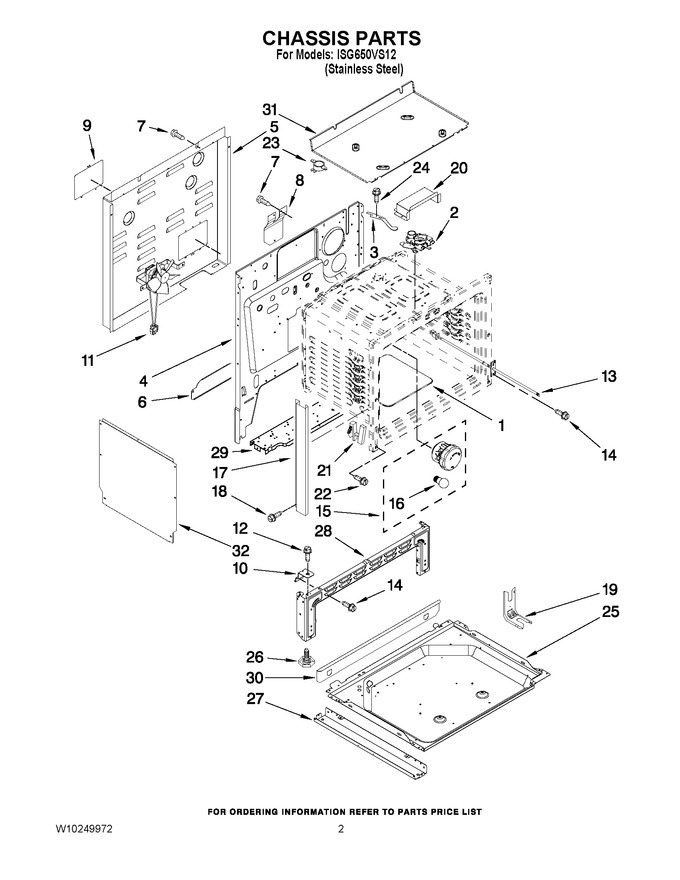

01 - Cooktop Parts
02 - Chassis Parts
03 - Manifold Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2205F054-19 | Bottom, Oven (Replaces: 2205F054-19) |
|
$ 774.07 | |||||
| 2 | 8002P094-60 | Latch Assembly |
|
- | |||||
| 3 | 8009P031-60 | Lever, Latch |
|
$ 6.00 | |||||
| 4 | 3804F313-51 | Main Back |
|
- | |||||
| 5 | 4005F810-51 | Cover, Wire Rear |
|
$ 248.98 | |||||
| 6 | 3826F066-51 | Extension, Back |
|
$ 7.82 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 8 | 7402P086-60 | Insulator, Cord |
|
- | |||||
| 9 | 4005F612-51 | Panel, Access |
|
$ 46.13 | |||||
| 10 | 3807F727-45 | Support, Oven (bottom) |
|
$ 18.96 | |||||
| 11 | WPW10586440 | Fan, Cooling (Replaces: 7427P094-60) |
|
$ 334.53 | |||||
| 12 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 13 | 12001655 | Sensor, Oven (Replaces: 7430P041-60) |
|
Immediately | $ 45.57 | ||||
| 14 | WP7101P434-60 | Screw (4) (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 15 | WP7407P182-60 | Light Assembly (Replaces: 7407P182-60) |
|
Immediately | $ 73.44 | ||||
| 16 | 8009 | Bulb-oven (Replaces: 7407P103-60) |
|
Immediately | $ 18.67 | ||||
| 17 | 3608F138-70 | Trim, Side |
|
$ 66.28 | |||||
| 18 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 19 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F656-51) |
|
Immediately | $ 6.11 | ||||
| 20 | 4005F750-51 | Cover, Door Lock |
|
- | |||||
| 21 | 74011142 | Hinge (2) (Replaces: 7106P141-60) |
|
Immediately | $ 120.24 | ||||
| 22 | WP4159193 | Screw, Hinge (4) (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 23 | 7450P030-60 | Switch, Hi-limit |
|
Immediately | $ 101.80 | ||||
| 24 | WP4159193 | Screw, Lever (2) (Replaces: 7101P230-60) |
|
$ 5.07 | |||||
| 25 | 3804F245-51 | Retainer, Insul (bottom) |
|
$ 97.02 | |||||
| 26 | WP74010805 | Leg, Leveling (Replaces: 7101P660-60) |
|
$ 7.55 | |||||
| 27 | 4020W035-80 | Pedestal, Bottom |
|
$ 118.46 | |||||
| 28 | W10271711 | Pedestal, Front |
|
$ 144.40 | |||||
| 29 | 3807F640-51 | Support, Valve Reg |
|
$ 31.03 | |||||
| 30 | 3601F251-45 | Baffle, Oven |
|
- | |||||
| 31 | 4011F491-51 | Bottom, Burner Box |
|
- | |||||
| 32 | 3604F416-51 | Shield, Lwr Side |
|
$ 59.21 | |||||
| NI | 7002P445-60 | Insulation, Back |
|
- | |||||
| NI | 7002P471-60 | Insulation, Oven Bottom |
|
- |
