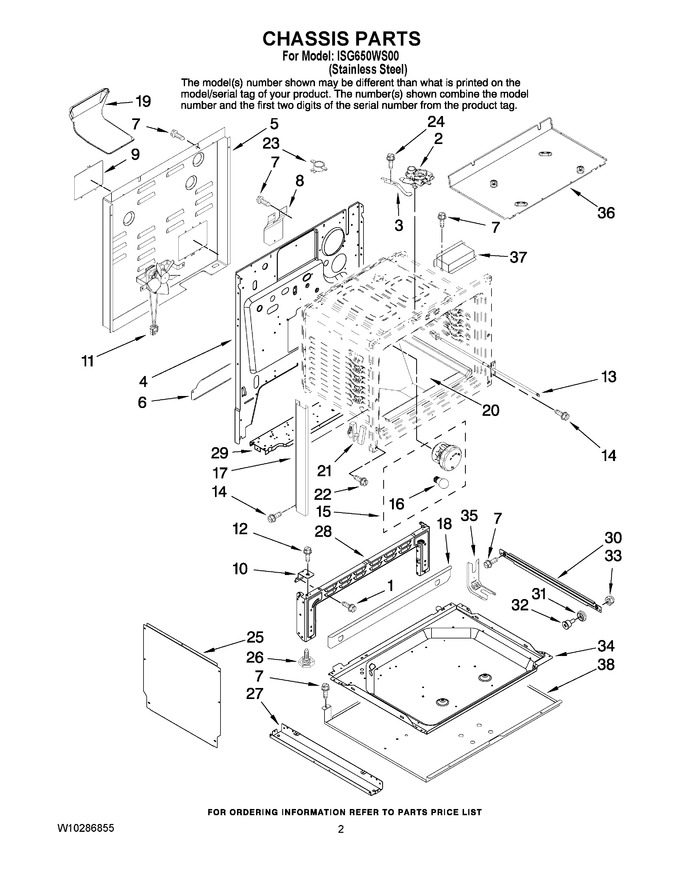

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Drawer And Rack Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw W/washer   (Replaces: 7101P426-60)			Immediately	$ 8.25
2	8002P094-60		Latch Assembly		Appelez-nous	-
3	8009P031-60		Lever, Latch				$ 6.00
4	3804F313-51		Main Back		Appelez-nous	-
5	4005F810-51		Cover, Wire Rear				$ 248.98
6	3826F066-51		Extension, Back				$ 7.82
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	7402P086-60		Insulator, Cord		Appelez-nous	-
9	4005F612-51		Panel, Access				$ 46.13
10	3807F727-45		Support, Oven (bottom)				$ 18.96
11	WPW10586440		Fan, Cooling   (Replaces: 7427P094-60)				$ 334.53
12	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
13	12001655		Sensor, Short   (Replaces: 7430P041-60)			Immediately	$ 45.57
14	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
15	WP7407P182-60		Light Assembly   (Replaces: 7407P182-60)			Immediately	$ 73.44
16	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 18.67
17	3608F138-70		Trim, Side				$ 66.28
18	3601F251-45		Baffle, Oven Front		Appelez-nous	-
19	8026P095-60		Box, Assy Vent				$ 60.62
20	WP2205F054-19		Bottom, Oven   (Replaces: 2205F054-19)				$ 774.07
21	74011142		Hinge (2)   (Replaces: 7106P141-60)			Immediately	$ 120.24
22	WP4159193		Screw, Hinge (4)   (Replaces: 7101P282-60)				$ 5.07
23	7450P030-60		Switch, Hi-limit			Immediately	$ 101.80
24	WP4159193		Screw, Lever (2)   (Replaces: 7101P230-60)				$ 5.07
25	3604F416-51		Shield, Lower Side				$ 59.21
26	WP74010805		Leg, Leveling   (Replaces: 7101P660-60)				$ 7.55
27	4020W035-80		Pedestal, Bottom				$ 118.46
28	W10271711		Pedestal, Front				$ 144.40
29	3807F640-51		Support, Valve Reg				$ 31.03
30	W10182835		Runner, Drawer (2)				$ 75.89
31	WP74004078		Roller Drawer (2)   (Replaces: 8014P022-60)			Immediately	$ 12.48
32	7118P032-60		Shaft, Roller (2)		Appelez-nous	-
33	7103P190-60		Nut, Lock (2)		Appelez-nous	-
34	3804F245-51		Retainer, Insul (bottom)				$ 97.02
35	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
36	4011F491-51		Bottom, Burner Box		Appelez-nous	-
37	4005F750-51		Cover, Door Lock		Appelez-nous	-
38	3604F326-45		Shield, Drawer		Appelez-nous	-
NI	7002P471-60		Insulation, Wrap		Appelez-nous	-
NI	7002P445-60		Insulation, Back		Appelez-nous	-
NI	7002P443-60		Insulation, Oven Bottom				$ 41.31
