SELECT A DIAGRAM

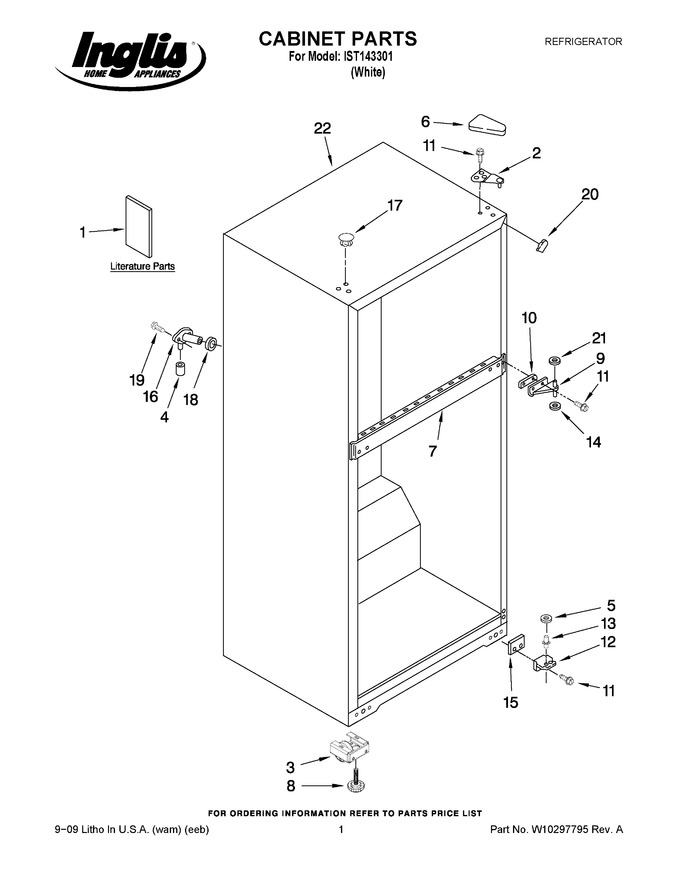

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
1	W10212088		Service & Wiring Sheet		Appelez-nous	-
1	2316213		Use & Care Guide		Appelez-nous	-
1	2328577		Energy Guide		Appelez-nous	-
2	WP2261963		Hinge Butt, Top   (Replaces: 2261963)			Immediately	$ 99.45
3	WPW10142530		Roller, Front   (Replaces: W10142530)			Immediately	$ 112.48
4	WP487996		Cap Bushing   (Replaces: 487996)				$ 8.26
5	WP487576		Washer, Plain   (Replaces: 487576)			Immediately	$ 9.88
6	WP2213360		Cover Hinge   (Replaces: 2213360)				$ 19.23
7	N/P		Rail, Center (not Serviced)		Appelez-nous	-
8	WPW10133299		Leveler   (Replaces: W10133299)				$ 11.76
9	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 78.16
10	2166043		Shim, Hinge Center				$ 69.76
11	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
12	WP2325482		Hinge Butt, Btm   (Replaces: 2325482)			Immediately	$ 76.19
13	WP2325483		Hinge-pin, Btm   (Replaces: 2325483)			Immediately	$ 7.19
14	WP487802		Washer 7/64   (Replaces: 487802)			Immediately	$ 7.91
15	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.77
16	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 11.99
17	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 21.78
18	WP1106508		Seal   (Replaces: 1106508)			Immediately	$ 9.93
19	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.79
20	W10859322		Corner Filler   (Replaces: 2166003)				$ 7.70
21	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.88
22	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
