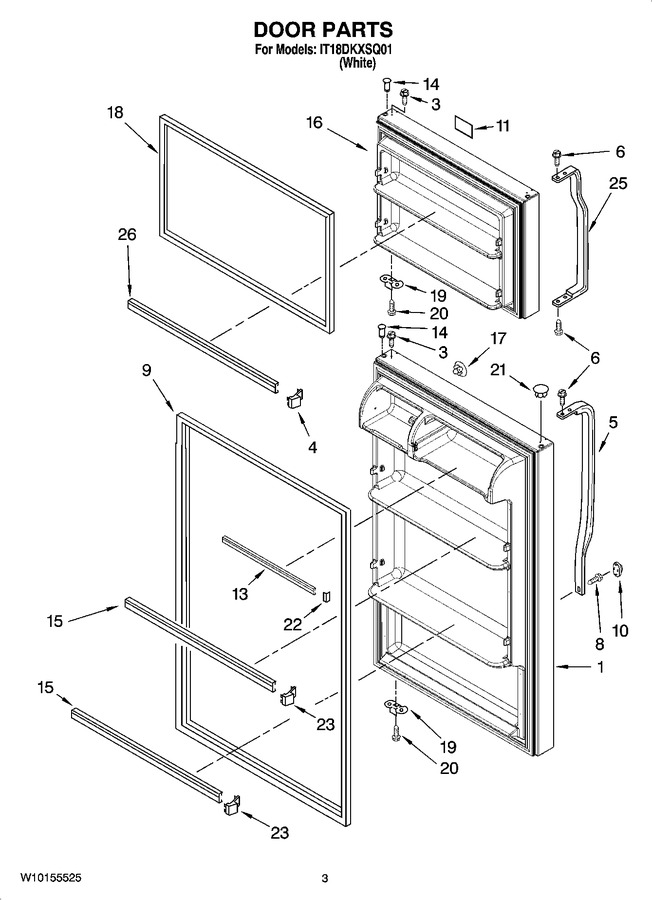

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2263256W		Refrigerator Door (includes Illus. 9,14)		Appelez-nous	-
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
4	WP2156003		Trim, Endcap   (Replaces: 2156003)			Immediately	$ 12.62
5	WP2221946W		Handle, Refrigerator   (Replaces: 2221946W)			Immediately	$ 130.11
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	WP2319264T		Door Gasket, Magnetic   (Replaces: 2263258)			Immediately	$ 192.71
10	WP2202819W		Screw Cover   (Replaces: 2202819W)			Immediately	$ 7.75
11	2314160W		Nameplate		Appelez-nous	-
13	W11129820		Trim, Door Shelf (upper)   (Replaces: 2266729)			Immediately	$ 121.28
14	WP2183003		Thimble   (Replaces: 2262054)				$ 7.75
15	WP2266738		Trim, Door   (Replaces: 2266738)				$ 111.69
16	2263254W		Freezer Door (includes Illus. 14,18)		Appelez-nous	-
17	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 7.40
18	WP2319263T		Door Gasket, Magnetic   (Replaces: 2263257)			Immediately	$ 169.53
19	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
21	WP2212648		Hole Plug   (Replaces: 2212648)			Immediately	$ 7.80
22	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
23	WP2195916K		Trim, End Cap   (Replaces: 2195916)			Immediately	$ 12.55
25	WP2202098		Handle, Freezer   (Replaces: 2202098)				$ 149.35
26	WP2266727		Trim-door   (Replaces: 2266727)			Immediately	$ 92.50
