SELECT A DIAGRAM

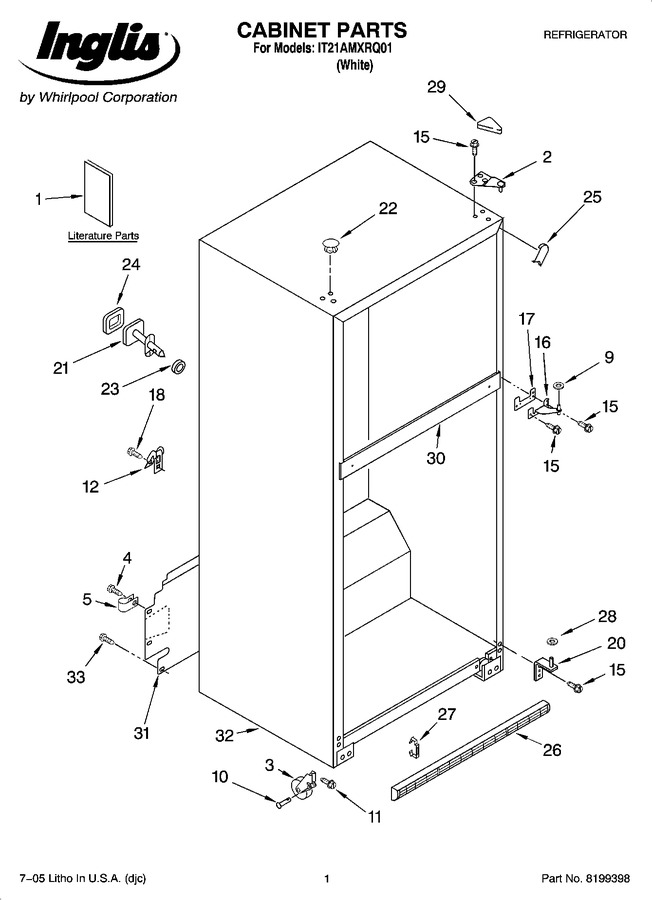

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2314273		Service & Wiring Sheet		Appelez-nous	-
1	2225623		Modular Icemaker Service Sheet		Appelez-nous	-
1	2225413		Customer Instructions		Appelez-nous	-
1	2314150		Use & Care Guide		Appelez-nous	-
1	2314155		Energy Label		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.92
9	WP489467		Washer   (Replaces: 489341)			Immediately	$ 11.42
10	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 19.12
11	WP3400504		Screw   (Replaces: 3400504)				$ 7.55
12	549193		Clamp-cord				$ 14.06
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 92.02
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 11.43
18	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 8.38
20	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 9.28
22	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 22.87
25	WPW10283959		Corner Filler (2)   (Replaces: 2201014)				$ 8.21
26	2254313		Grille (includes Illus. 27)				$ 41.62
27	2189356		Clip-grille (2)				$ 5.70
28	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
29	WP2213360		Cover Hinge   (Replaces: 2213360)				$ 20.19
31	2202884		Cover, Unit		Appelez-nous	-
33	WP489427		Screw   (Replaces: 489427)				$ 7.84

    View Diagram in Separate Window       Print Part List
