SELECT A DIAGRAM

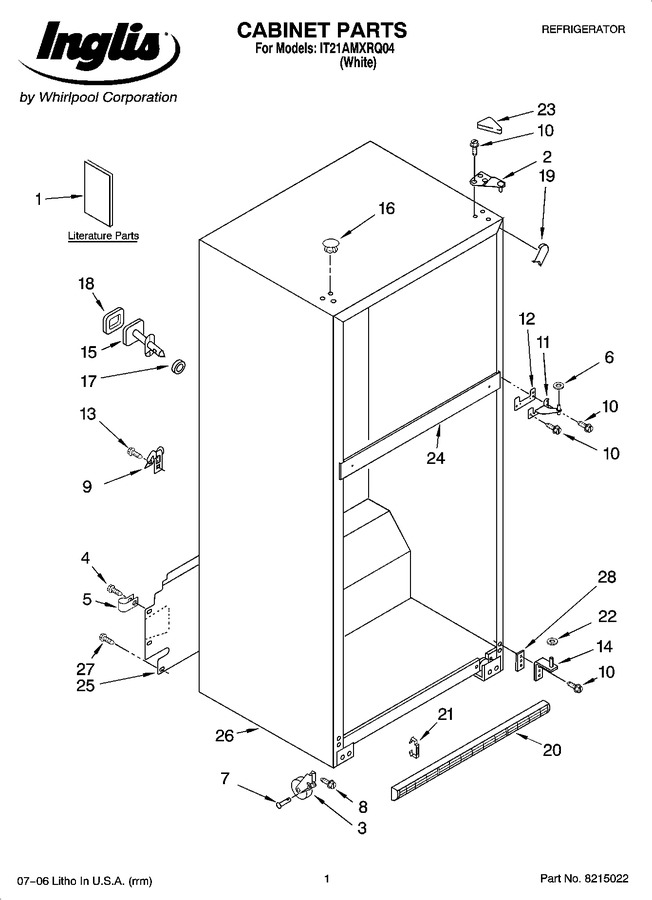

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2314469		Use & Care Guide		Appelez-nous	-
1	2225623		Modular Icemaker Service Sheet		Appelez-nous	-
1	2314274		Service & Wiring Sheet		Appelez-nous	-
1	2319930		Energy Label		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.18
6	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.88
7	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 18.21
8	WP3400504		Screw   (Replaces: 3400504)				$ 7.19
9	549193		Clamp-cord				$ 13.39
10	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
11	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 87.64
12	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 10.89
13	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 7.83
14	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 8.47
16	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 21.78
19	WPW10283959		Corner Filler (2)   (Replaces: 2201014)				$ 7.82
20	2254313		Grille (includes Illus. 21)				$ 41.62
21	2189356		Clip-grille (2)				$ 5.70
22	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
23	WP2213360		Cover Hinge   (Replaces: 2213360)				$ 19.23
25	2202884		Cover, Unit		Appelez-nous	-
27	WP489427		Screw   (Replaces: 489427)				$ 7.47
28	2172743		Spacer, Hinge Bottom				$ 33.55
