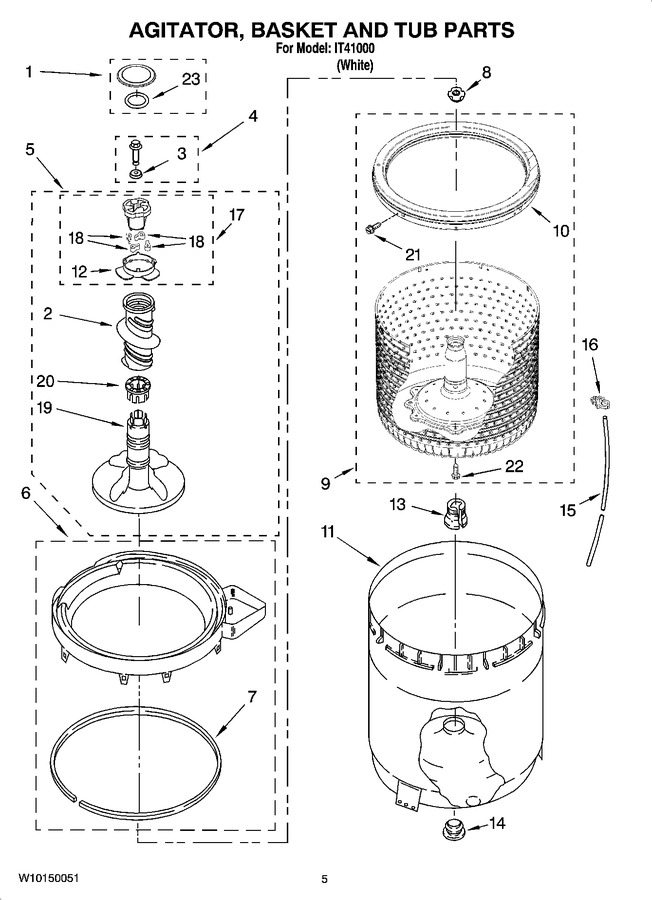

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8565983 | Cap & Seal Assembly |
|
$ 35.12 | |||||
| 2 | WP3360824 | Auger, Agitator (Replaces: 3360824) |
|
$ 222.57 | |||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | WP358237 | Screw & Washer (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 5 | WPW10093671 | Agitator (complete) (Replaces: W10093671) |
|
$ 349.97 | |||||
| 6 | W10880720 | Tub Ring (Replaces: 8528150) |
|
Immediately | $ 233.34 | ||||
| 7 | WP3976308 | Gasket, Tub Ring (Replaces: 3976308) |
|
Immediately | $ 29.66 | ||||
| 8 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 9 | W10042080 | Basket & Balance Ring |
|
$ 86.00 | |||||
| 10 | W10116946 | Balance Ring |
|
- | |||||
| 11 | 63849 | Tub |
|
$ 306.29 | |||||
| 12 | WP3363661 | Bearing, Driven Cam (Replaces: 3363661) |
|
$ 8.23 | |||||
| 13 | WP389140 | Block, Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 14 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.98 | ||||
| 15 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 16 | 2219077 | Clip, Pressure Switch Hose |
|
$ 64.24 | |||||
| 17 | 285748 | Cam-driven (Replaces: 3363662) |
|
Immediately | $ 35.75 | ||||
| 18 | 80040 | Dog, Agitator Cltch (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 19 | W10093670 | Agitator |
|
$ 241.42 | |||||
| 20 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 4.42 | ||||
| 21 | W10112540 | Screw, Balance Ring |
|
- | |||||
| 22 | W10112537 | Screw, Adapter Assembly |
|
- | |||||
| 23 | WP358912 | Seal-cap (Replaces: 358912) |
|
$ 8.27 |
